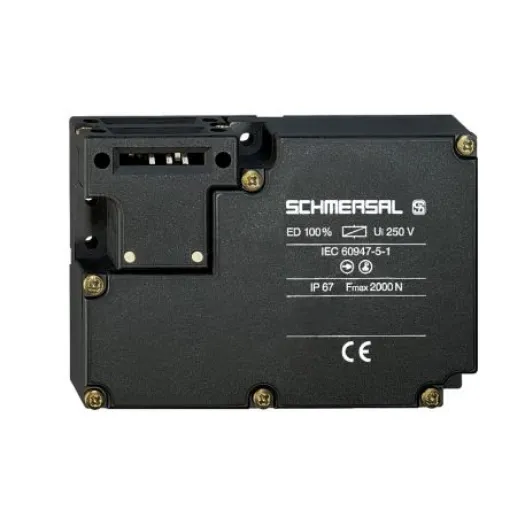

Schmersal AZM 161 Series Solenoid Interlock Switch, Power to Lock, 24V ac/dc, 4NC/2NO - AZM 161SK-12/12RKA-024

Schmersal Solenoid Interlock SwitchThe Schmersal AZM161 series power to lock interlock solenoid switch has a power supply voltage rating of 24VAC/DC with 4NC safety and 2NO auxiliary contact configuration. It has double-insulated thermoplastic enclosures with screw terminals. Note: Actuating key is not included, see accessories. Interlocks with power to lock should only be used after a thorough evaluation of the risk as the guarding device can immediately be opened in an event of failure of electrical power supply or when the main switch is opened. Caution: EN60947-5-1 standard is only met if the entire system consisting of a safety sensor (AZM161), magnet (AZM) and a safety monitoring module (AES) is used.Features and BenefitsInterlock with protection against incorrect locking Long life Large wiring compartment Manual release Cable entries of 4M16 x 1.5CertificationsIP67 rated BG certified UL listed CSA certified IEC/EN60947-5-1 BG-GS-ET-19 CCC certified EAC certified
