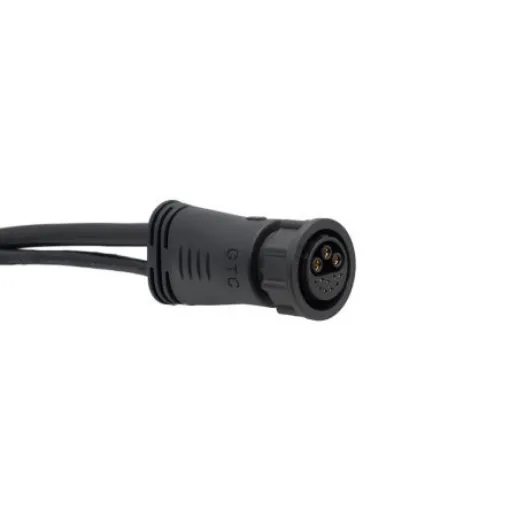

RS PRO Hybrid Power & Signal Connector, 2 + 10 Contacts, Cable, C5 Connector, Plug, Female, IP67 - 1797950

Number of Contacts = 2 + 10
Mounting Type = Cable
Connector Size = C5
Plug/Socket = Plug
Contact Gender = Female
Termination Method = Pre-Wired
IP Rating = IP67
Current Rating = 20 + 5A
Series = Hybrid Series
Voltage Rating = 300 V
Mating Type = Bayonet
Housing Material = Thermoplastic
Pole Format = 3P + 9P
Shielded/Unshielded = Unshielded
Outer Diameter = 6mm

The RS Pro Hybrid connectors incorporate both power and signal connections within a single IP67 waterproof housing. Offered with bayonet style mating for quick and easy connect/disconnect these panel mount and in-line connectors help reduce installation times and mitigate the chance of wiring mistakes. Ideal for applications such as outdoor security systems, medical devices, energy monitoring systems and digital advertising boards. Mates with (179-7949) 179-7949Power and signal in one unit Simplify overall design Quick connect and disconnect Field installable type available Applications Medical equipment Solar equipment Outdoor LED display Outdoor LED lighting Wireless outdoor AP Industrial PC
