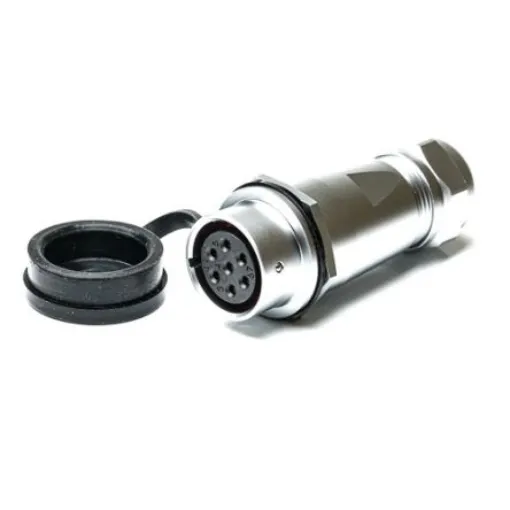

RS PRO Circular Connector, 7 Contacts, Cable Mount, M20 Connector, Socket, Female, IP67 - 2065159

Connector Size = M20
Plug/Socket = Socket
Contact Gender = Female
Termination Method = Solder
IP Rating = IP67
Current Rating = 10A
Series = SF20
Voltage Rating = 500V
Mating Type = Push-Pull
Housing Material = Chrome Plated Brass
Pole Format = 7P
Contact Plating = Gold
Minimum Operating Temperature = -40°C

RS PRO SF2011 Series In-Line Cable ConnectorsFrom RS PRO a fantastic series of cable mount connectors made from quality materials, designed for use with medical devices and test & measuring equipment. These M20 In-line cable connectors are available as male pins or female sockets, rated from 400V or 500V with 5A, 10A and 25A current rating. These products are ideal for making your own customised connector system where a secure waterproof connection is required.InstallationCircular connectors are coupling devices that are quick and easy to install, and the job can be carried out by both engineers or DIY enthusiasts. Each element should be assembled in a specific order to retain the integrity of the IP67 rating and a professional install. Wire cable and diameter are vital components so prior to soldering ensure the correct wire gauge (AWG) is being used in accordance with the application standard.Why would you choose these Industrial circular connectors?The RS PRO SF2011 series are push-pull In-line connectors available with plug or socket type connections, constructed to ensure high-performance with a watertight connection. They are popular with high-end equipment for their quality and performance. During application, the connectors can be used for either data or power, and are ideal for use in medical, communications, and test & measurement applications.Features and Benefits• SF2011 In-line cable connectors• Connector size: M20• Push-Pull coupling system• Type: Plug or Socket • 2, 3, 4, 5, 7, 9 or 12 pole versions• Solder or screw terminations• Waterproof• Interconnect with cable/panel mount connectors• Panel-hole cut-out size: 20 mm• Cable outer diameter: 8-12 mm• Wire size for solder: 4/11 mm², 2/14 mm², 0.75/18 mm²• Wire size for screw (2, 3 and 4 pole): 1.5/15 mm²Specifications• Housing material: Chrome Plated Brass• Contact Material: Brass with gold plating• Insulation resistance: 2000 MO• >500 mating cycles• Temperature range: -40~+85 °C• Voltage Power Rating: 400 V, 500 V • Current rating: 5A, 10A, 25A• IP67RS PRO Male Plug In-line Cable Connector Options - Screw Termination• 2 Pin, 25A, 500 V; RS stock no (206-5141) 206-5141• 3 Pin, 25A, 500 V; RS stock no (206-5143) 206-5143• 4 Pin, 25A, 500 V; RS stock no (206-5146) 206-5146RS PRO Female Socket In-line Cable Connector Options - Screw Termination• 2 Socket, 25A, 500 V; RS stock no (206-5153) 206-5153• 3 Socket, 25A, 500 V; RS stock no (206-5155) 206-5155• 4 Socket, 25A, 500 V; RS stock no (206-5157) 206-5157RS PRO Male Plug In-line Cable Connector Options - Solder Termination• 2 Pin, 25A, 500 V; RS stock no (206-5140) 206-5140• 3 Pin, 25A, 500 V; RS stock no (206-5142) 206-5142• 4 Pin, 25A, 500 V; RS stock no (206-5145) 206-5145• 5 Pin, 10A, 500 V; RS stock no (206-5147) 206-5147• 7 Pin, 10A, 500 V; RS stock no (206-5148) 206-5148• 9 Pin, 5A, 400 V; RS stock no (206-5149) 206-5149• 12 Pin, 5A, 400 V; RS stock no (206-5139) 206-5139RS PRO Female Socket In-line Cable Connector Options - Solder Termination• 2 Socket, 25A, 500 V; RS stock no (206-5152) 206-5152• 3 Socket, 25A, 500 V; RS stock no (206-5154) 206-5154• 4 Socket, 25A, 500 V; RS stock no (206-5156) 206-5156• 5 Socket, 10A, 500 V; RS stock no (206-5158) 206-5158• 7 Socket, 10A, 500 V; RS stock no (206-5159) 206-5159• 9 Socket, 5A, 400 V; RS stock no (206-5160) 206-5160• 12 Socket, 5A, 400 V; RS stock no (206-5151) 206-5151InterconnectionInterconnects with RS PRO SF2010 cable mount connectors.ApplicationsSuitable for use in Medical, Telecommunications, Test & Measurement, and Industrial applications.Why would you choose RS PRO for Industrial Circular Connectors?RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
