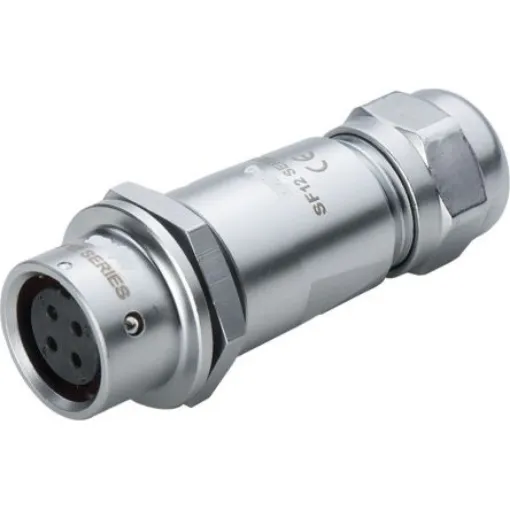

RS PRO Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67 - 1246704

Reliable M12 circular connector with IP67 rating, perfect for harsh environments.
Manufacturer part number: 1246704
GTIN: 5056279010788
Vendor: YACHTNEEDS-RS
Availability: Out of stock
€38.24
i h
Only Ships to: France, Monaco
For shipping outside these regions, please contact customer support.
Termination Method = Solder
IP Rating = IP67
Current Rating = 5A
Series = SF12
Voltage Rating = 180V
Mating Type = Push-Pull
Pole Format = 5P
Contact Plating = Gold
Minimum Operating Temperature = -40°C

M12 In-Line Push-Pull Cable Plug. From RS Pro, these push-pull plugs are serious contenders for your application. The convenient push-pull connection, makes it perfect in situations where accidental disconnects occur. That coupled with the IP67 rating, makes sure that this industrial connector excels in harsh environments. When choosing a female connector, this version should really be one you consider. Panel hole cutout diameter: 12 mm 2 way, 3 way, 4 way and 5 way all available Cable outer diameter: 4 mm to 6.5 mm see part numbers ; 124-6696 124-6696 ; 124-6697 124-6697 ; 124-6698 124-6698 ; 124-6699 124-6699 Cable outer diameter: 5 mm to 8 mm see part numbers ; 124-6700 124-6700 ; 124-6701 124-6701 ; 124-6703 124-6703 ; 124-6704 124-6704 Solder termination Chrome plated brass shell material Inline cable mounted. Features ; Benefits
