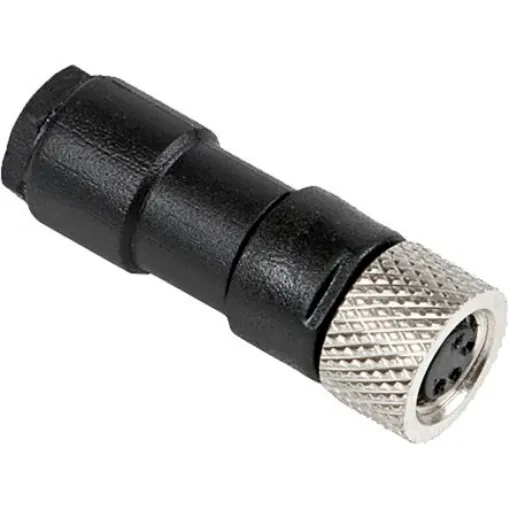

RS PRO Circular Connector, 4 Contacts, Cable Mount, M8 Connector, Socket, Female, IP67 - 1863089

Reliable M8 female socket connector with IP67 rating for robust cable connections.
Manufacturer part number: 1863089
GTIN: 5059045121701
Vendor: YACHTNEEDS-RS
Availability: In stock
€26.63
i h
Only Ships to: France, Monaco
For shipping outside these regions, please contact customer support.
Number of Contacts = 4
Mounting Type = Cable Mount
Connector Size = M8
Plug/Socket = Socket
Contact Gender = Female
Termination Method = Solder
IP Rating = IP67
Current Rating = 4.0A
Body Orientation = Straight
Voltage Rating = 30.0 V
Mating Type = Threaded
Pole Format = 4P

RS PRO Circular ConnectorThe RS PRO circular 4-pole, straight cable mount M8 female connector has socket type connection. This connector’s voltage rating is 30V and the current rating is up to 4A per contact. The threaded connectors mate with cable mount plugs and feature a neoprene O-ring connector receptacles that provide endless connection possibilities. The connector body has gold plated contact plating with brass nickel plated coupling nut and PG5 cable gland.Features and Benefits• Insulation resistance is greater than or equal to 100Mohm • Operation temperature ranges between -25°C and 75°C • Solderable pin type termination • Sturdy and reliable connectionApplications• Automation and sensor equipment • Industrial machineryCertifications• IP67 rated
