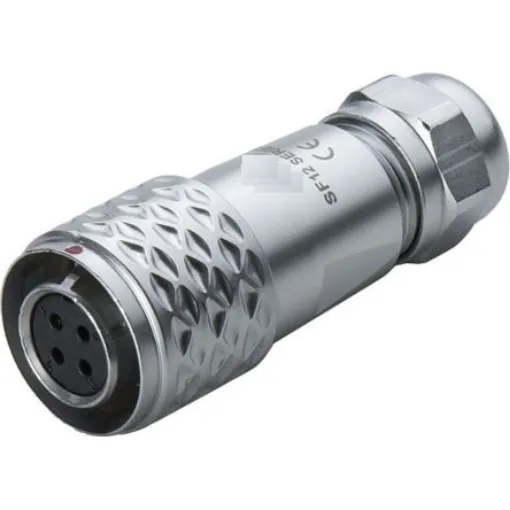

RS PRO Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Plug, Female, IP67 - 1246737

Number of Contacts = 4
Mounting Type = Cable Mount
Connector Size = M12
Plug/Socket = Plug
Contact Gender = Female
Termination Method = Solder
IP Rating = IP67
Current Rating = 5A
Series = SF12
Voltage Rating = 200V
Mating Type = Push-Pull
Housing Material = Chrome Plated Brass
Pole Format = 4P
Contact Plating = Gold
Minimum Operating Temperature = -40°C

M12 Push-Pull Cable Socket. ;strong>DISCLAIMER: We have recently made a design change to the grip feature of this product and there will be a period of time where you may receive mixed stock. This will not affect the product performance. ;/strong>. From RS Pro, these push-pull sockets are serious contenders for your application. The convenient push-pull connection, makes it perfect in situations where accidental disconnects occur. That coupled with the IP67 rating, makes sure that this industrial connector excels in harsh environments. When choosing a female connector, this version should really be one you consider. Features ; Benefits. Panel hole cutout diameter: 12 mm 2 way, 3 way, 4 way and 5 way all available Cable outer diameter: 4 mm to 6.5 mm See RS part numbers below ; 124-6731 124-6731 ; 124-6732 124-6732 ; 124-6733 124-6733 ; 124-6734 124-6734 Cable outer diameter: 5 mm to 8 mm See RS part numbers below ; 124-6735 124-6735 ; 124-6736 124-6736 ; 124-6737 124-6737 ; 124-6738 124-6738 Solder termination Chrome plated brass shell material
