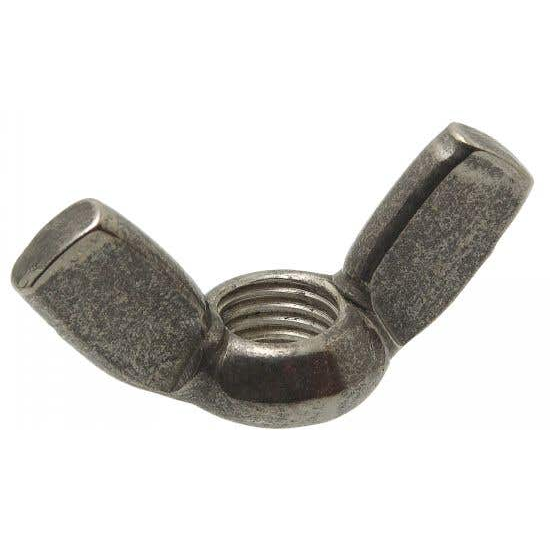

QBM's Stainless Steel Wing Nuts are designed for quick and easy hand tightening without the need for tools, making them ideal for applications requiring rapid assembly and disassembly. These wing nuts conform to the DIN 315 standard, ensuring compatibility and reliability.
- Quick Hand Tightening: The winged design allows for easy manual tightening and loosening, eliminating the need for wrenches or other tools.
- Corrosion Resistance: Made from A4 stainless steel, these wing nuts offer excellent resistance to corrosion, making them suitable for marine environments.
- Standard Compliance: Manufactured according to DIN 315 specifications, ensuring consistent quality and compatibility.
Technical Specifications:
- Material: A4 Stainless Steel
- Standard: DIN 315
- Type: Wing Nut
- Thread Sizes Available: M4, M5, M6, M8, M10, M12, M14, M16, M20, M24
- Packaging Options: Sold in packs of 5 or 10 pieces
Materials:
- A4 Stainless Steel: Provides high resistance to corrosion, making it suitable for use in marine environments.
Dimensions:
The dimensions of the wing nuts vary based on the thread size. For example, the M4 wing nut has the following dimensions:
- D1 (Nominal Size): 4 mm
- D2 (Width Across Flats): 8.0 mm
- E (Height): 10.5 mm
- G (Width Across Wings): 20.0 mm
- H (Height of Wings): 10.5 mm
These dimensions are based on the DIN 315 standard.
Compatibility Information:
These wing nuts are compatible with standard metric threads and are suitable for various applications requiring quick hand tightening and disassembly.
