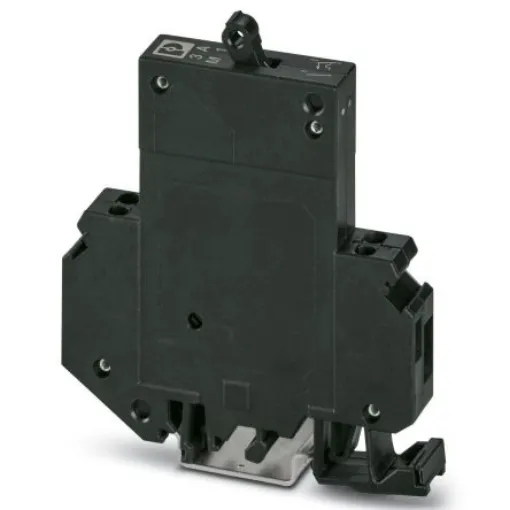

Phoenix Contact Thermal Circuit Breaker - TMC M1 Single Pole 65 V dc, 250V ac Voltage Rating DIN Rail Mount, 3A - 0914471
Protect your systems with the Phoenix Contact TMC M1 Circuit Breaker, designed for reliable 3A performance.
Manufacturer part number: 0914471
GTIN: 4017918009151
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Current Rating = 3A
Number of Poles = 1
Voltage Rating = 65 V dc, 250V ac
Width = 12.5mm
Series = TMC M1
Mounting Style = DIN Rail Mount
Overall Length = 82.5mm
Phoenix Contact Thermomagnetic Circuit Breaker - M1. The DIN rail mounting, single pole, TMC 1 M1 range of thermomagnetic circuit breakers from Phoenix Contact have SFB tripping characteristics that give a maximum overcurrent protection over long cable paths. Features and Benefits. DIN rail mounting Trip faster than thermal device circuit breakers Only 12.5 mm wide Screw connection Push in or screw connection available Integrated remote signalling Universal foot for mounting on NS 32 or NS 35. Typical Applications. TMC M1 thermomagnetic circuit breakers are mostly used in process control, information and communication technology because of the different tripping characteristics. The circuit breakers are a great solution for protecting valves, motors, logic controllers and frequency inverters.
