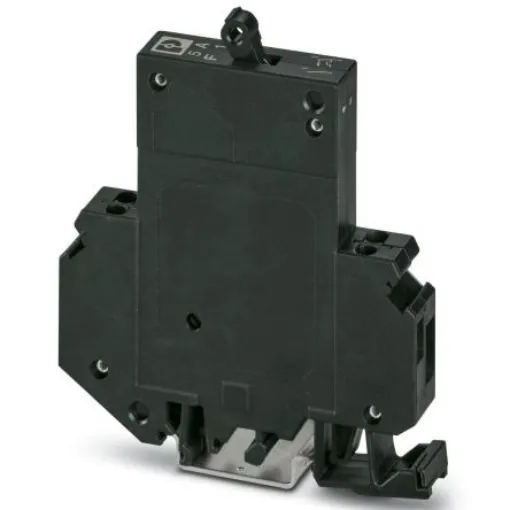

Phoenix Contact Thermal Circuit Breaker - TMC 1 Single Pole 65 V dc, 250V ac Voltage Rating DIN Rail Mount, 5A Current - 0914138

Phoenix Contact Thermomagnetic Circuit Breaker - F1. The DIN rail mounting, single pole, TMC range of thermomagnetic circuit breakers from Phoenix Contact have SFB tripping characteristics that give a maximum overcurrent protection over long cable paths. Features and Benefits. DIN rail mounting Trip faster than thermal device circuit breakers Only 12.5 mm wide Current rating 2 A to 16 A available Push in or screw connection available Integrated remote signalling Universal foot for mounting on NS 32 or NS 35. Typical Applications. TMC thermomagnetic circuit breakers are mostly used in process control, information and communication technology because of the different tripping characteristics. The circuit breakers are a great solution for protecting valves, motors, logic controllers and frequency inverters.
