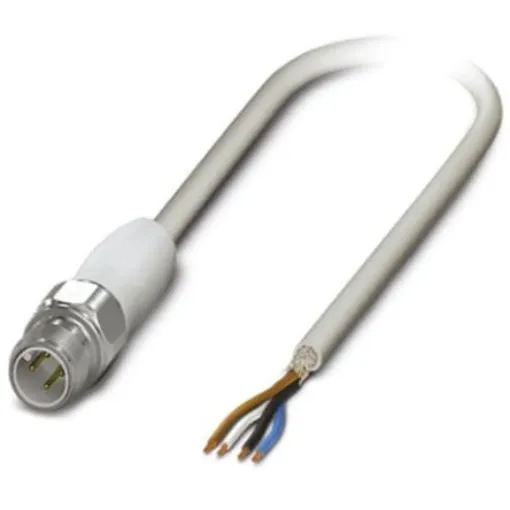

Phoenix Contact Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 5m - 1403983

IEC 61076-2-101. Stock numbers ; 794-4386 794-4386 and ; 794-4424 794-4424 have 3 built in indicator LEDs. Stock Numbers ; 794-4358 794-4358 and ; 794-4376 794-4376 are both shielded variants. Phoenix Contact A-Coded M12 Sensor/Actuator Cable Assembly with High Grade Steel Knurl. Phoenix Contact 4 and 5 way A-coded M12 sensor/actuator cable assembly with high grade steel knurl and Grey RAL 7035 PP-EPDM cable with a free end, Corrosion resistant stainless steel, easy to clean and contamination can easily be seen due to the light coloured plastic backshell moulding, designed to meet the requirements of the pharmaceutical and food industries and for applications that have demanding hygienic requirements. IP Rated to IP69K, with a current and voltage rating of 4A at 250V and halogen free cable. Available in standard and shielded versions (4 way only), straight or angled design and also with 3 indicator LEDs. Features ; Benefits. Operating temperature range -40 to +105 °C. Conductor cross section 4 or 5 x0.34 mm ;sup>2 ;/sup>. Halogen free cable. A-Coded M12 connector, 5 Metres of free end cable. Brown, white, blue and black wire colours (4 Way). Brown, white, blue, black and grey wire colours (5 Way)
