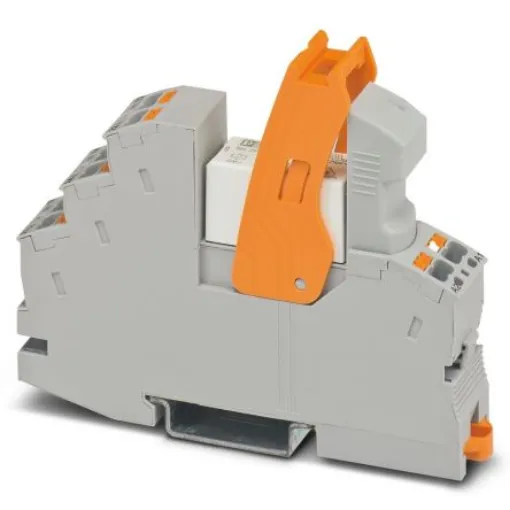

Phoenix Contact RIF-1-RPT-LDP-24DC/1ICT Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPST - 1078686
Reliable Phoenix Contact relay module for efficient signal coupling and high-capacity switching.
Manufacturer part number: 1078686
GTIN: 4055626792170
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Contact Configuration = SPST
Mounting Type = DIN Rail
Series = RIF-1-RPT-LDP-24DC/1ICT
Minimum Input Voltage = 24V dc
Terminal Type = Plug In
Depth = 75mm
Height = 96mm
Length = 16mm
Contact Material = Silver Alloy
Turn Off Time = 10ms
Phoenix Contact Relay Module, Plug-In Terminal, SPNO - RIF-1-RPT-LDP-24DC/1ICT - 1078686Easily adjust voltages or amplify power with this solid-state relay module from Phoenix Contact. It safely couples signals between a controller and field devices and is suitable for switching strong capacitive loads, such as LEDs (light-emitting diodes). The relay is pre-assembled for quick and simple installation, and it includes a base and retaining bracket with an eject function and equipment marking area. A plug-in interference suppression module protects the relay by reducing voltage peaks when switching off inductive loads. Its mechanically coded to prevent you from mismatching it with other components. Use this relay in any application that has high switch-on peaks. Its leading tungsten pre-contact can safely switch on currents of up to 800 A. The unit has an IP20 (ingress protection) rating, so its touch-proof and protected against objects over 12 mm in size.• Coil voltage of 24 V DC • Input current of 18 mA • Input and switching voltage range of 12 V AC/DC to 250 V AC/DC • Life of 3 x 10^7 mechanical cycles • Switching current of 100 mA • SPNO (single pole, normally open) contact configuration • Silver alloy contact material • DIN rail mounting type • Dimensions of 16 (length) x 75 (depth) x 96 mm (height) • Operating temperature range of -40°C to +70°C
