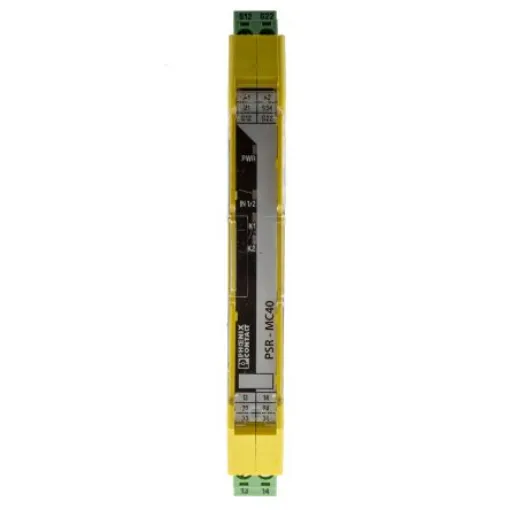

Phoenix Contact PSRmini PSR-MC40-3NO-1DO-24DC-SC Emergency Stop Safety Relay, 24V dc, Dual-Channel, 3 Safety Contacts - 2700569
Ensure safety with the Phoenix Contact PSRmini Emergency Stop Relay, designed for reliable performance in critical applications.
Manufacturer part number: 2700569
GTIN: 4046356912570
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24V dc
Number of Channels = 2
Safety Contacts = 3
Function = Emergency Stop
Auxiliary Contacts = 3
Reset Method = Automatic & Manual
Range = PSRmini
Safety Category ISO 13849-1 = 4
SIL IEC 61508 = 3
Terminal Type = Screw
Configurable = No
Series = PSR-MC40-3NO-1DO-24DC-SCmm
Length = 112mm
EN ISO 13849-1, EN 62061, IEC 61508. CE, UL, cULus, TUV. Phoenix Contact PSRmini Safety Relay. The PSRmini safety relays from Phoenix Contact are the most narrow safety relay on the market to provide proven safety thanks to force-guided contacts. The Innovative relay technology offers maximum safety and high switching loads up to 6 A. The PSR-MS with a width of just 6 mm comes with 1 to 2 enabling paths, and the PSR-MC with a width of 12 mm comes with 2 to 3 enabling paths. They are available as a single or dual channel device suitable for monitoring emergency stops, safety doors and light curtains - as well as to control actuators. Features and Benefits. Compatible with all important signal transmitters and safety-relevant systems Screw and push-in spring connection Automatic reset, Automatic/Manual reset, Automatic/Manual/Monitored reset, Manual/Monitored reset options available Up to 70% space saved Easy and quick diagnosis given means shorter downtime
