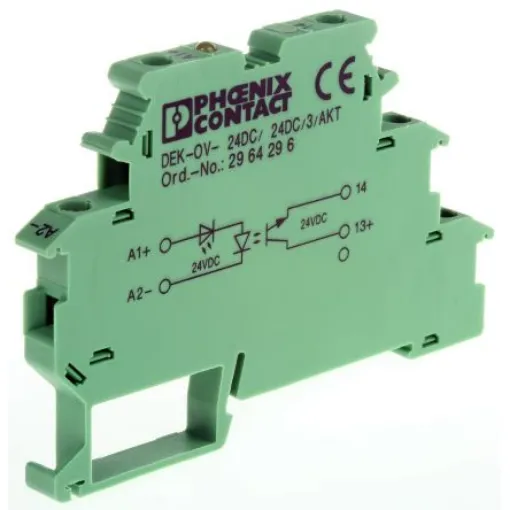

Phoenix Contact DEK-OV- 24DC/24DC/3/AKT Series Solid State Interface Relay, 3 A Load - 2964296
Reliable solid state relay with 3A load capacity and electrical isolation for safe equipment interfacing.
Manufacturer part number: 2964296
GTIN: 4017918104191
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Maximum Load Current = 3 A
Maximum Load Voltage = 19.2 V dc
Series = DEK-OV- 24DC/24DC/3/AKT
Minimum Operating Temperature = -20°C
IEC 60 664, IEC 60 664A, DIN VDE 0110. Phoenix Contact Opto-Couplers with Solid State Relay Output. These DIN rail mount opto-couplers from Phoenix Contact provide an ideal means of interfacing on/off signals to, or from, equipment, whilst providing electrical isolation between their own inputs and outputs. In other words, these may be used to protect equipment by electrically isolating its inputs, outputs, or both. The dc/ac and ac/dc versions also provide a means of interfacing (whilst isolating) ac and dc control voltages. Features and Benefits. Dc in/Dc out, Dc in/Ac out and Ac in/Dc out versions available Versions with switching speeds up to 100kHz available 2.5kVac input to output isolation LED status indication Module width 6.2mm Operating temperature range: -20 to +60°C
