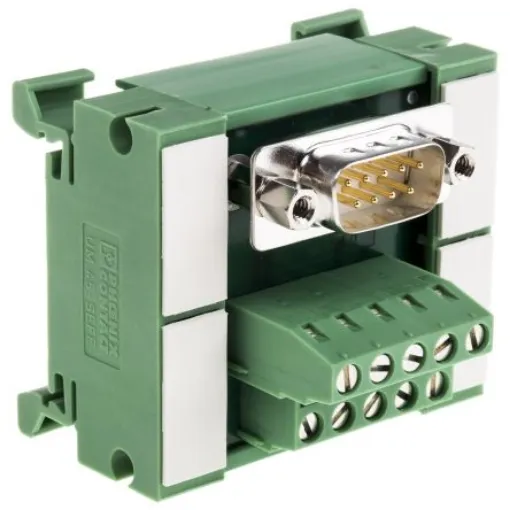

Phoenix Contact 9-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 2.5A - 2962777

Varioface Compact-Line Modules for D-Sub connectors. The range of Varioface Compact-Line modules for D-Sub connectors from Phoenix Contact have the same properties as standard Varioface modules but are smaller in size. Due to their low-profile mount of just 45 mm, the interface modules guarantee a high density in the cabinet and thus account for the trend towards miniaturisation. This significantly reduces the cabinet volume and, consequently, all related costs. These modules are equipped with 9- to 50-pin male or female D-Sub connectors and screw-connection terminal blocks for conductor cross-sections up to 1.5 mm². Features and Benefits. Screw connection DIN Rail mount 800 V ac test proof voltage For assembly on NS 35/7.5
