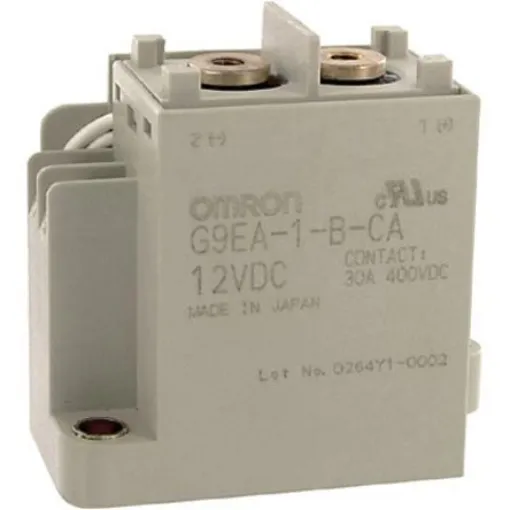

Omron Power Relay, 12V dc Coil, 80A Switching Current, SPST - G9EA-1-B-CA-DC12
High-performance Omron power relay with 12V DC coil and 80A switching capacity for reliable applications.
Manufacturer part number: G9EA-1-B-CA-DC12
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 12V dc
Contact Configuration = SPST
Switching Current = 80A
Number of Poles = 1
Latching = No
Terminal Type = Screw
Maximum Switching Voltage AC = 400V ac
Maximum Switching Voltage DC = 400V dc
Length = 73mm
Coil Resistance = 26.2O
Coil Power = 5.5W
Depth = 36mm
Omron Non-Latching RelayThe Omron G9EA series surface mount non-latching relay has a contact configuration of SPNO. It is actuated with 12VDC coil voltage and 80A switching current. This DC power relay is capable of interrupting high capacity DC loads while enabling compact, low-noise and safe applications. It has a switching and driving section that are gas-injected and hermetically sealed, allowing the relay to interrupt high-capacity loads.Features and BenefitsCapable of switching 400V 60A DC loads and interrupting 600A at 300VDC (maximum) Coil resistance is 26.2ohm Coil power is 5.5W Coil to contact isolation is 2.5kVAC Downsizing and optimum design allow no restrictions on the mounting direction Screw terminal typeCertificationsCSA certified UL approved
