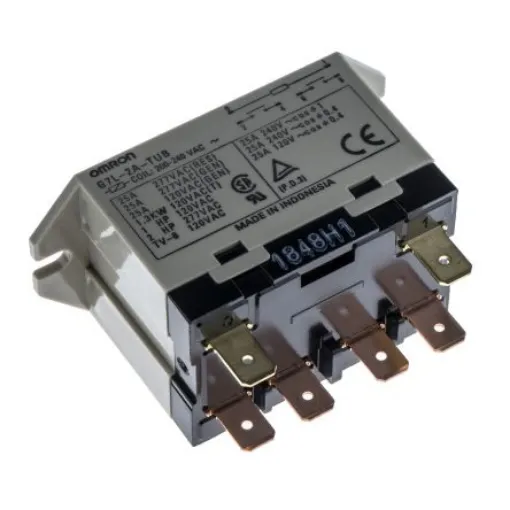

Omron Plug In Power Relay, DPST - G7L-2A-TUB AC200/240

G7L2ATUB 200/240AC Multi-Pole Power SSR – Solid State Relay. The G7L relay high capacity SSR – Solid state relay handles momentary voltage drops plus is supplied with a double-break mechanism. The miniature size provides maximum switching power with inductive loads, wide ranging applications plus confirms to UL, CSA, TUV meeting IEC950. Features and Benefits G7L-2A-TUB SSR – Solid State Relay (power relay). • High-dielectric strength relay. • Compatible with momentary voltage drops. • No contact chattering AC Activated coil. • Miniature size. • Maximum switching power (inductive loads). • Flame resistant (UL94V-O). • Safety design contact gap 3 mm. • Upper bracket mounting. • Contact DPST- NO (normally open). • Quick connect terminals. • 2 Poles. • No test button with this model. • Coil voltage 200/240 V ac. • RoHS Compliant. Coil Rating Features G7L-2A-TUB SSR – Solid State Relay (power relay). • Rated current 8.5 to 10.2 mA (measured at coil temp 23°C). • Must operate voltage 150 V. • Must release voltage 36 V. • Max permissible voltage 264 V. • Power consumption 1.7 to 2.5 VA (60 Hz) approx. Contact Rating G7L-2A-TUB SSR – Solid State Relay (power relay). • Contact type double break. • Contact material Ag alloy. • Rated load 25 A at 220 V ac. • Rated carry current 25 A. • Max switching voltage 250 V ac. • Max switching current 25 A. Additional Features G7L-2A-TUB SSR – Solid State Relay (power relay). • Contact resistance 50 MO max (50V dc, 1 A drop method). • Operate and release time 60 ms max. • Insulation resistance 1000 MO min. • Vibration resistance destruction and malfunction, 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude). • Shock resistance destruction 1000 m/s². Malfunction 100 m/s². • Operating temperature ambient -25°C to 60°C. • Relay weight 90 g approx. Suitable Connecting Sockets. • DIN Rail front mounting socket – part number P7LF-06D – stock number (376105) 376105. Suitable retaining Clip – E Bracket. • Part number R99-07 for G7L – stock number (2048212) 2048212. Applications. • Compressors for air conditioners. • Heating switching controllers. • Switching controllers for power tools, motors. • Power controllers for water heaters. • Power controllers for dryers. • Lamp controls, motor drivers, power supply switching in copy machines, facsimile machines, office equipment. • Lighting controllers. • Power controllers for packers or food processing equipment, • Magnetron control in microwaves. • Power controllers for Uninterruptible power supply (UPS).
