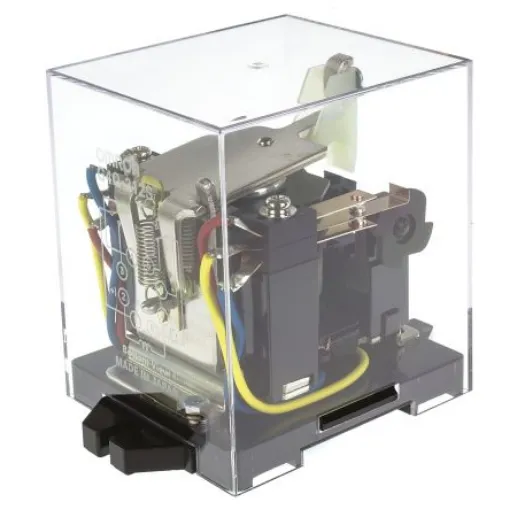

Omron Plug In Latching Power Relay, 12V dc Coil, 5A Switching Current, DPDT - G4Q-212S DC12
Reliable 12V DC latching power relay with 5A switching capacity for efficient motor operation.
Manufacturer part number: G4Q-212S DC12
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 12V dc
Contact Configuration = DPDT
Mounting Type = Plug In
Switching Current = 5A
Number of Poles = 2
Latching = Yes
Terminal Type = Plug In
Maximum Switching Voltage AC = 250V ac
Maximum Switching Voltage DC = 250V dc
Length = 92.5mm
Coil Resistance = 37.5O
Coil Power = 3.9W
Height = 80mm
Maximum Switching Power AC = 1.1 kVA
8 Pin DPDT Ratchet Relay. 2 pole plug-in relay, each contact in the contact mechanism performs alternate make-break operation at each pulse input and is thus ideal for alternate operation or transfer/switching operation of a motor. Contact Rating 5A@ 220 V ac/ 24 V dc Unique ratchet mechanism assures positive alternate transfer/switching operation Minimum pulse application = 100 ms Quick response speed allows continuous use of the relay Dielectric strength of 2000 V ac Low power consumption (a.c. approx. 6.4 VA, d.c. approx. 3.9 W) Electrical Life: 5 x 105 steps (min) Mechanical Life: 5 x 106 steps (min) Max Switch Power: 1100 VA, 250 V ac; 120 W, 250 V dc Operating temperature range -10 to +55°C
