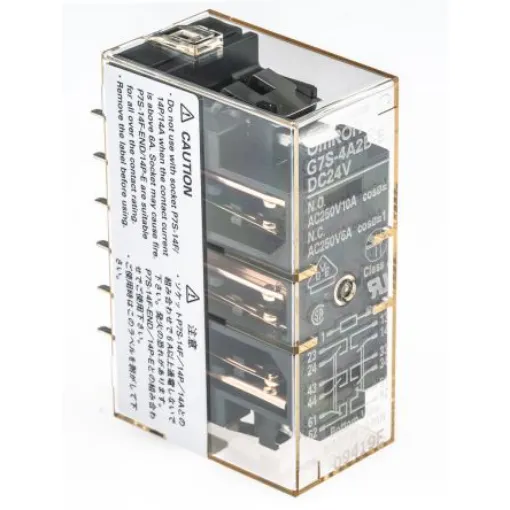

Omron PCB Mount Force Guided Relay, 24V dc Coil Voltage, 6 Pole, 4PST, DPST - G7S-4A2B-E DC24
Reliable 6-pole PCB mount relay with 24V DC coil voltage for efficient performance.
Manufacturer part number: G7S-4A2B-E DC24
GTIN: 4536854872648
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Mounting Type = PCB Mount
Contact Configuration = 4PST, DPST
Number of Poles = 6
Coil Resistance = 800O
Switching Current = 10A
Coil Power = 800mW
Maximum Switching Current DC = 10 A
Maximum Switching Voltage DC = 30V
Maximum Switching Voltage AC = 250V
Terminal Type = Through Hole
Approvals = CE Compliant, UL Recognised
Standards Met = UL, VDE
Height = 37mm
Conforms to EN 50205. UL, CSA. Stock number 584004 is Track Mounted Socket. 10A, 6A Relays with Forcibly Guided Contacts - G7SA. The G7S-A relays are slimline with forcibly guided contacts with a 10 Amp rating for NO Contact and 6A for NC. They are available as six-pole types with two contact configurations. It can be soldered directly to a PCB or used together with the P7S socket for panel installations. Forcibly guided contacts 10A at 240VAC and 10A at 24VDC for resistive loads 14 pins 800 O contact resistance Reinforced insulation between inputs and outputs and poles Sealing: unsealed Operating temperature: -25 to 70C
