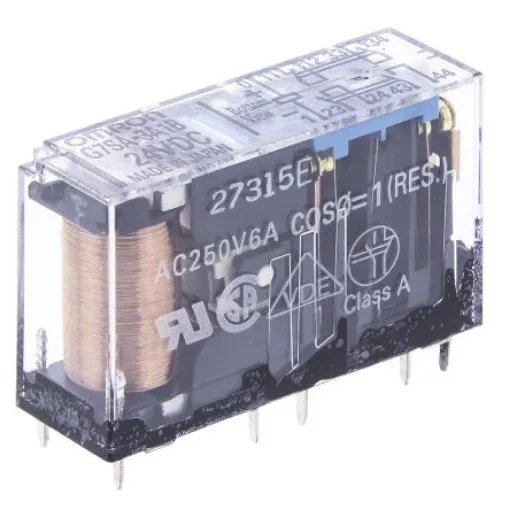

Omron PCB Mount Force Guided Relay, 24V dc Coil Voltage, 4 Pole, 3PST, SPST - G7SA-3A1B DC24
Reliable 4 pole PCB mount relay with 24V DC coil voltage for efficient switching.
Manufacturer part number: G7SA-3A1B DC24
GTIN: 4536854579752
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Mounting Type = PCB Mount
Contact Configuration = 3PST, SPST
Number of Poles = 4
Coil Resistance = 1.6 kO
Switching Current = 6A
Coil Power = 800mW
Maximum Switching Current DC = 6 A
Maximum Switching Voltage DC = 30V
Maximum Switching Voltage AC = 250V
Terminal Type = Through Hole
Life = 1000000 Cycles; 100000Cycles
Conforms to EN 50205. UL, CSA. 6A Relays with Forcibly Guided Contacts - G7SA. The slimline G7SA relay family with forcibly guided contacts is available as a four- or six-pole type in various contact combinations and offers reinforced insulation. Terminals are arranged for easy PCB layout. It can be soldered directly to a PCB or used together with the P7SA sockets for panel installations. Forcibly guided contacts 6A at 240VAC and 6A at 24VDC for resistive loads Reinforced insulation between inputs and outputs and poles 4- and 6-pole relays available Sealing: flux-tight Operating temperature: -40 to 85C
