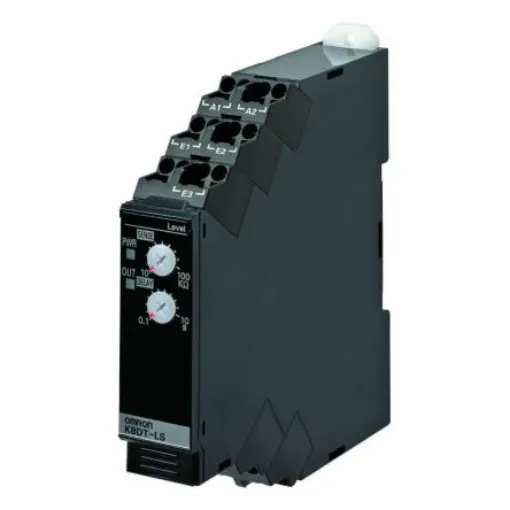

Omron Level Monitoring Relay, 3 Phase, SPDT, DIN Rail - K8DT-LS1CD

K8DT-LS Monitoring Water Level Controls Relays. • Downsize control panels. • Reduced wiring. • Front setting switches. • Detects errors in Motors and other equipment via current changes. • Use in either over current or under current mode. • Function as an alarm. • Set threshold values. • Alarm output can be set as a relay or transistor output. • Input signal – Voltage, current, water level electrode and temperature (thermocouple or platinum resistance thermometer) can be input. • Sensitivity adjustment and timer. • Lower power consumption. • Side by side mounting is possible. • Long term contact reliability. • Reliable in poor noise environments. • Slim profile 17.5 mm K8DT-LS1CD 24 VAC/DC Model. • Conductive Level Monitoring Relay Controller. • Single phase. • SPDT Contact output. • Power supply 24 V ac/dc. • Response time 0.1 s to 10 s (variable). • Current capacity 10 A (per pole). Features and Benefits. • Power supply 100 to 240 V ac, 50/60 Hz, 24 V dc • Green LED Power (PWR) • Yellow LED output (OUT) • One SPDT contact relay. • DIN Rail Mounted or Screw Mounted. • Excellent for water level control. • Number of insertions 50 times • Weight 100 g • Case material PC, UL 94 V-0. • Colour N1.5 • Protection IP20 (terminals) What is a Monitoring / Measuring Relay? A monitoring / measuring relay is a protective control device, various types are available suiting what you wish to monitor. The relays receive input signals then monitor them and then output an alarm signal when a set value is reached (alarm relays). The relays protect your equipment against over voltage and over current faults. Monitoring relays monitor AC power supplies, voltage and current, analogue signals detecting unusual activity in equipment against set alarm thresholds. Types of Monitoring Relays Available? • Motor protection relays • Temperature monitoring relays • Water level control relays • Voltage • Current
