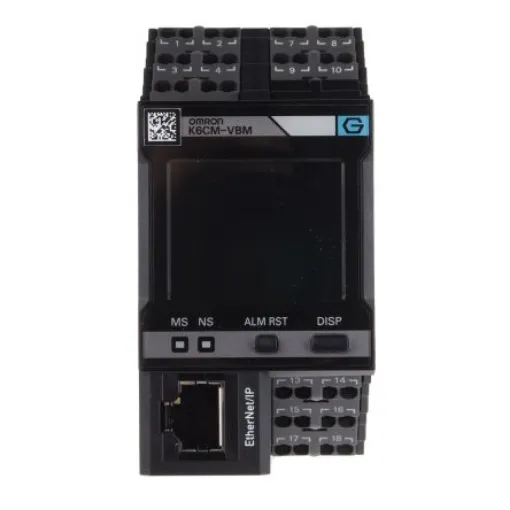

Omron K6CM Motor Protection Unit, 24 V ac/dc - K6CM-VBMD-EIP

Range = K6CM
Supply Voltage = 24 V ac/dc
Motor Protection System = K6CM Motor Condition Monitoring Device
Output = Transistor
Overall Length = 91.9mm
Overall Width = 45mm
Overall Depth = 90mm
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +55°C

Omron Motor Condition Monitoring DeviceThe Omron motor condition monitoring device quantifies the status of the 3-phase induction motor and pump. It has a current rating of 600A and voltage rating of 24VAC/DC. The default alarm output threshold is already set. You can customize the value according to the site. As for comprehensive current diagnosis, the degradation can be detected comprehensively by combining each motor part and the load side. The insulation resistance of the 3-phase induction motor and pump can be measured with current flowing (the secondary side leakage current of the inverter can also be detected).Features and Benefits• Equipped with a transistor output that externally outputs the status of the motor and error states of the K6CM main unit • Monitor values of vibrations, temperature, insulation resistance and current • Monitoring can be performed easily on the PC by Ethernet/IP • push-in plus terminal technology reduces wiring work (double insertion holes for crossover wiring) • Self-diagnosis function of the main unit internal circuit and analogue sensing circuit • Transistor output that externally outputs the status of the motor and error statesCertifications• CE certified • EAC certified • IC certified • UL approved
