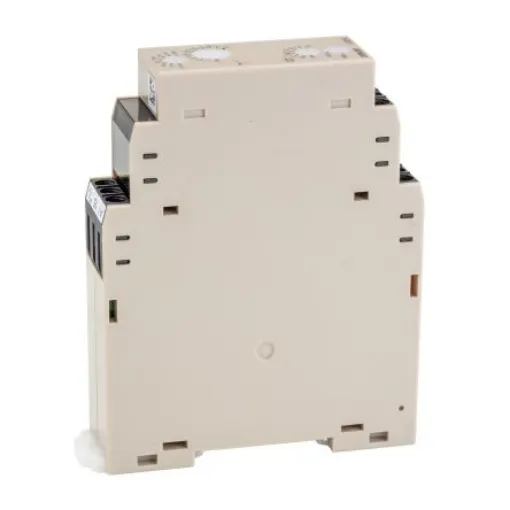

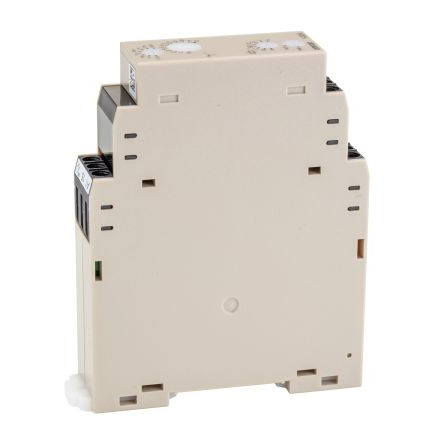

Omron H3DK Series DIN Rail Mount Timer Relay, 12V dc, 2-Contact, 0.1 s o 1200 h, DPDT - H3DK-M2A DC12
Reliable DIN rail timer relay with adjustable timing from 0.1 seconds to 1200 hours.
Manufacturer part number: H3DK-M2A DC12
GTIN: 4548583745094
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 12V dc
Mounting Type = DIN Rail
Mode of Operation = ON Delay
Time Range = 0.1 s o 1200 h
Number of Contacts = 2
Number of Timer Functions = Multi Function
Contact Configuration = DPDT
Time Increment = Hours, Minutes, Seconds
Maximum Current = 5A
Maximum Voltage = 12V dc
Terminal Type = Screw
Width = 79mm
Minimum Current = 0.1A
Minimum Operating Temperature = -20°C
DIN Track-mounted, 22.5-mm-width Standard Timer SeriesA wide AC/DC power supply range (24 to 240 VAC/DC). All sub-series include models with 12-VDC power supply. G-type Models (H3DK-G) now include model with 240 to 440-VAC power supply.
