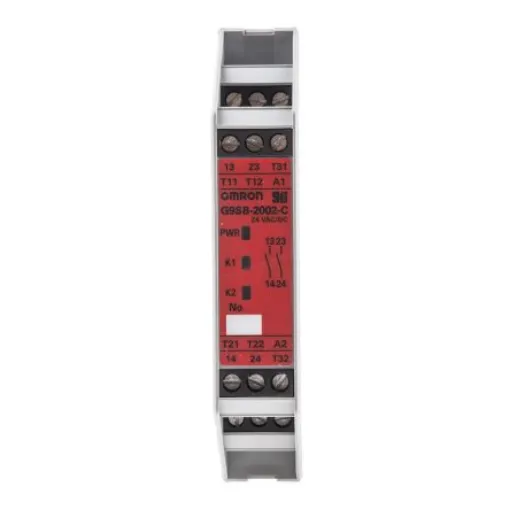

Omron G9SB Emergency Stop Safety Relay, 24V ac/dc, Dual-Channel, 2 Safety Contacts - G9SB-2002-C AC/DC24

Supply Voltage = 24V ac/dc
Number of Channels = 2
Safety Contacts = 2
Function = Emergency Stop
Safety Category ISO 13849-1 = 4
PL ISO 13849-1 = e
Terminal Type = Screw
Standards Met = CE, CSA
Series = G9SBmm
Performance Level = emm

G9SB Ultra Slim Safety Relays. • Ultra slim relay module. • Models with a width of 17.5 mm are available with 2 or 3 poles (safety contacts). • Models with a width of 22.5 mm with 3 poles (safety contacts). • 1 and 2 input channels. • Manual and automatic reset. • Can be DIN rail mounted. • Relays with inverse inputs are used when inputting signals from 2 mechanical switches. • Relays with positive commons are used when inputting signals from a safety sensor or one mechanical switch. • Conform to EN standards (TUV approval). • G9SB-3010 is applied to safety category 3 of EN 954-1 if double breaking is used. Applicable to Safety Sensors. • Model F3S-B • Model F3SH • Model F3S-J • Model F3SL • Model F3SN • Model F3S-TGR Model F3S-TGR Safety Sensors covers a range of articles available within Non-Contact Safety Switches, Light Curtains, Light Beams and Machine Guarding Accessories. G9SB-2002-C AC/DC24 Slim Safety Relay. • Main contact DPST-NO (normally open). • No Auxiliary contact • 2 Channels. • Manual reset. • Input type Inverse. • Rated voltage 24 V ac/dc. • Operating voltage range 85% to 110% of the rated power supply voltage. • Power consumption 1.6 VA/1.4 W max. • Input current 25 mA max. • Resistive load • Rated load 250 V ac, 5 A. 30 V dc, 5 A. • Rated carry current 5 A. Features and Benefits. • Contact resistance 100 mO • Insulation resistance 100 MO mon (at 500 V dc) • Vibration resistance 10 to 55 to 10 Hz, 0.375 mm single amplitude (0.75 mm double amplitude) • Shock resistance destruction 300 m/s². • Shock resistance malfunction 100 m/s² • Failure rate (P Level) (reference value) 5 V dc, 1 mA • Always turn OFF the G9SB before connecting an expansion unit. • If mounting multiple units next to each other the rated current will be 3 A. (do not apply any higher currents) • Stranded wire 0.2 to 2.5 mm² • Solid Wire 0.2 to 2.5 mm² • Screw torque of 0.5 to 0.6 Nm. (incorrect screw tightening can result in a malfunction or generate heat). • Positive thermistor built onto the circuits detecting short breakdowns. • Weight 115 g Applications Include. • Light curtain. • Light guard.
