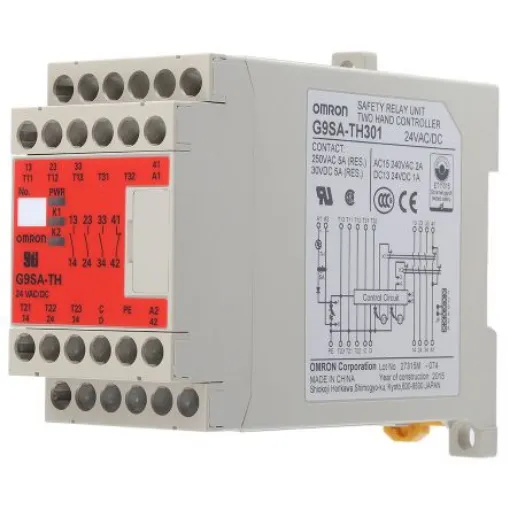

Omron G9SA Two Hand Control Safety Relay, 24V ac/dc, Dual-Channel, 3 Safety Contacts - G9SA-TH301 AC/DC24

G9SA Compact Expandable Safety Relays. • Compact. • Four relay types of 45 mm widths available. • 3-pole, 5-pole, models with 3-poles and 2 OFF-delay poles plus 2-hand controller. • Also available are the 17.5mm wide relay expansion units with 3-poles and 3 OFF-delay poles. • Easy expansion connection. • OFF-delay safety relay models have 15-step OFF-delay settings. • Conforms to EN ISO 13849-1 (PLe/safety category 4) • DIN rail mounting and Screw mounting. • Used for most safety relay applications within the industrial automation industry. G9SA Safety Relay Series Explained. • G9SA -301 or G9SA-501 – Relay Emergency Stop Units. • G9SA-321- T – Relay Emergency Stop OFF-delay units. • G9SA-TH – Relay Two-hand Controller. • G9SA-EX301 – Relay Expansion Units. • G9Sa-EX031 – Relay Expansion Units with OFF-delay Outputs. G9SA-TH301 AC/DC24 Two-hand Controller Safety Relay. • Main contact 3PST-NO (normally open). • Auxiliary contact SPST-NC (normally closed). • 2 Channels. • Rated voltage 24 V ac/dc. • Operating voltage range 85% to 110% of the rated power supply voltage. • Power consumption 24 V ac/dc, 1.8 VA/1.7 W max. • When an expansion unit is connected the power consumption is increased by 2 VA/2 W max. • Input current 40 mA max. • Resistive load • Rated load 250 V ac, 5 A. 30 V dc, 5 A. • Rated carry current 5 A. Features and Benefits. • Contact resistance 100 mO • Insulation resistance 100 MO mon (at 500 V dc) • Vibration resistance 10 to 55 to 10 Hz, 0.275 mm single amplitude (0.75 mm double amplitude) • Shock resistance destruction 300 m/s². • Shock resistance malfunction 100 m/s² • Failure rate (P Level) (reference value) 5 V dc, 1 mA • Weight 210 g. (for 24 ac/dc) • Weight 230 g. (for 100 to 240 V ac) • Do Not remove the connector of this model unless an expansion unit is being connected. • Always turn OFF the G9SA before connecting an expansion unit. • If mounting multiple units next to each other the rated current will be 3 A. (do not apply any higher currents)
