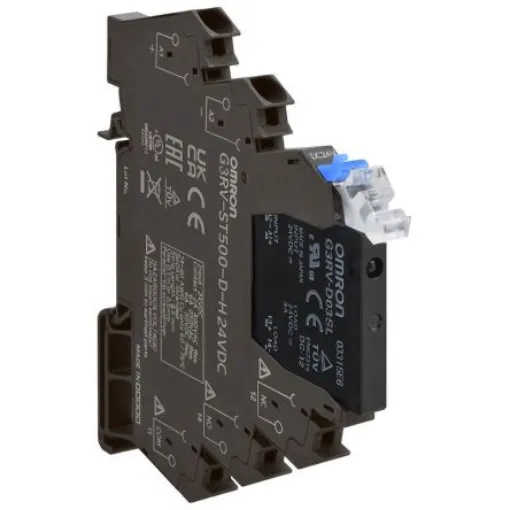

Omron G3RV-ST Series Solid State Interface Relay, 230 V ac Control, 3 A Load, DIN Rail Mount - G3RV-ST500-D AC230
Reliable 230V AC solid state relay with high-speed switching and DIN rail mount.
Manufacturer part number: G3RV-ST500-D AC230
GTIN: 4549734763110
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Maximum Control Voltage = 230 V ac
Maximum Load Current = 3 A
Mounting Type = DIN Rail
Maximum Load Voltage = 26.4 Vdc
Minimum Control Voltage = 207 V
Control Voltage Range = 184 - 253 V
Switching Type = High-Speed
Contact Configuration = SPDT
Load Voltage Range = 3 - 26.4V
Minimum Load Voltage = 3 Vdc
Terminal Type = Push In
Number of Poles = 1
Input Current = 7.5mA
Height = 90mm
Off State Leakage Current = 5 mAV
