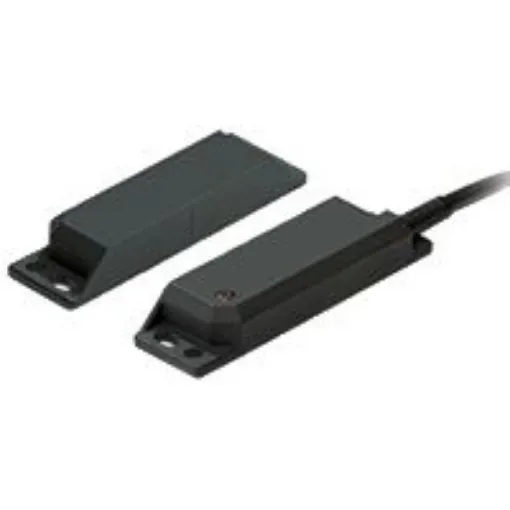

Omron F3S-TGR-N_U Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, 10m Cable - F3S-TGR-NLPU-21-10
Reliable non-contact safety switch with high tamper resistance and IP69K rating.
Manufacturer part number: F3S-TGR-NLPU-21-10
GTIN: 4547648977333
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24V dc
Safety Contacts = NO/2NC
Housing Material = Plastic
Connection Type = 10m Cable
Actuator Type = Unique Coded
Auxiliary Contacts = NO
Sensor Principle = Magnetic
Actuator Included = Yes
Switching Distance = 10 mm
IP Rating = IP69K
Supply Current = 30mA
Length = 88mm
EN standards certified by TÜV Rheinland, EN 954-1, EN ISO 13849-1, EN 60204-1, EN/IEC 60947-5-3, UL 508, CSA C22.2, BS 5304, EN 1088-1 conformance. Actuator. For suitable controller see the G9SA or G9SB from Omron, or the NE1A DeviceNet system. F3S-TGR Tamper Resistant Non Contact Switch. The Omron F3S-TGR-N series of non-contact switches use a design based on RFID technology. They have unique coding, only one actuator fits to the code of the sensor, which makes them ideal for applications that require high tamper resistance. Connect up to 20 switches in series LED for easy diagnosis Suitable for high pressure cleaning, CIP and SIP processes Flying lead IP69K, M12 connector IP67 Electronic output (potential-free optocoupler output) UL approved polyester Conforms to safety categories up to PLe acc. EN ISO 13849-1
