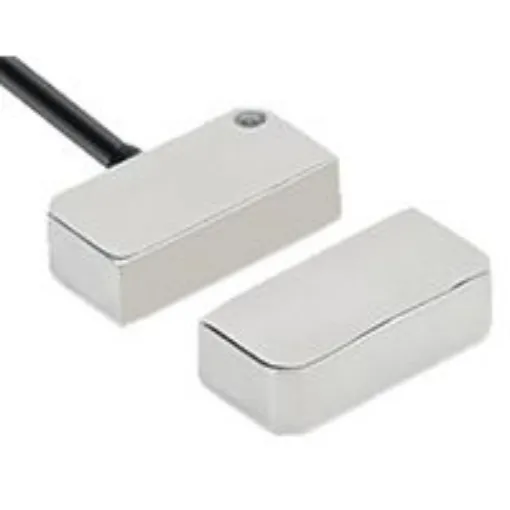

Omron F3S-TGR-N_R Series Magnetic Non-Contact Safety Switch, 24V dc, Stainless Steel Housing, NO/2NC, M12 - F3S-TGR-NSFR-21-M1J8

Supply Voltage = 24V dc
Safety Contacts = NO/2NC
Housing Material = Stainless Steel
Connection Type = M12
Actuator Type = Magnetic
Auxiliary Contacts = NO
Sensor Principle = Magnetic
Actuator Included = Yes
Switching Distance = 10 mm
IP Rating = IP67
Length = 50mm

EN standards certified by TÜV Rheinland, EN 954-1, EN ISO 13849-1, EN 60204-1, EN/IEC 60947-5-3, UL 508, CSA C22.2, BS 5304, EN 1088-1 conformance. Models F3S-TGR-N_C are coded. Actuator is included. For suitable controller see the G9SA or G9SB from Omron, or the NE1A DeviceNet system. F3S-TGR Non Contact Safety Switch. The F3S-TGR non contact safety switches are designed to interlock hinge, sliding or removable guard doors. Plastic and stainless steel switches are available, the latter are ideally suited to high hygiene demands in the food industry. The switches have a long sensing range to avoid false signals resulting from an ill aligned door, for example. Non-contact equals no abrasion which means no particles Excellent coverage of mechanical tolerances Can operate behind stainless steel fittings Screw hole covers. F3S-TGR-N_C Switch. Connect up to 3 switches in series LED for easy diagnosis Electronic output (potential-free optocoupler output) IP67 protection. F3S-TGR-N_R Switch. Connect up to 6 switches in series Reed contacts IP67 protection
