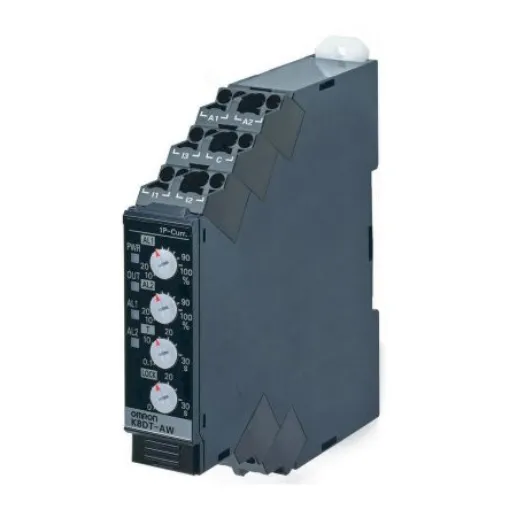

Omron Current Monitoring Relay, 1 Phase, SPDT, DIN Rail - K8DT-AW1CA
Monitor AC or DC currents with the Omron Current Monitoring Relay for reliable performance.
Manufacturer part number: K8DT-AW1CA
GTIN: 4548583773578
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Electrical Phase = 1
Mounting Type = DIN Rail
Maximum Current Sensed = 20 mA, 100 mA, 500mA
Current Sensitivity = Overcurrent, Undercurrent
Time Delay = 250ms
Series = K8DT-AW
Terminal Type = Push In°C
K8DT-AS allow use in either overcurrent or undercurrent mode. K8DT-AW allow overcurrent and undercurrent monitoring simultaneously. K8DT-AS/AW Single Phase Current Relay. Omron K8DT-AS/AW single phase current relays detect errors in motors and other equipment through current changes. Monitor AC or DC currents with one Relay. Use with commercially available current transformers Width of 17.5 mm to reduce space required in panels. Push-In Plus Terminal that reduce wiring work. Double-insertion holes for crossover wiring (all terminals).
