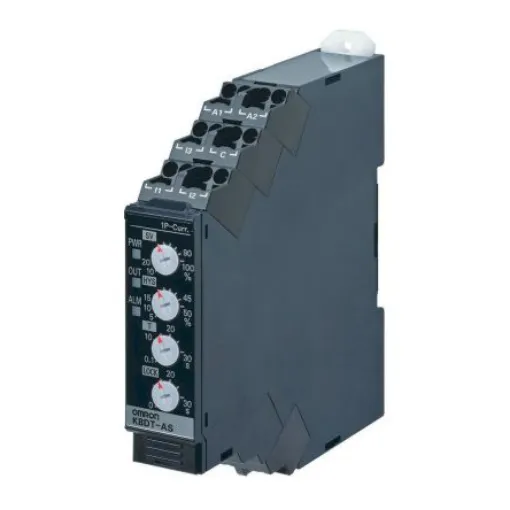

Omron Current Monitoring Relay, 1 Phase, SPDT, DIN Rail - K8DT-AS3CD
Efficiently monitor AC or DC currents with the Omron Current Monitoring Relay, designed for reliable performance.
Manufacturer part number: K8DT-AS3CD
GTIN: 4548583773530
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Monitoring Application = Current
Electrical Phase = 1
Contact Configuration = SPDT
Mounting Type = DIN Rail
Minimum Current Sensed = 10 A, 20A
Maximum Current Sensed = 100 A, 200A
Current Sensitivity = Overcurrent, Undercurrent
Time Delay = 250ms
Series = K8DT-AS
Height = 90mm
K8DT-AS allow use in either overcurrent or undercurrent mode. K8DT-AW allow overcurrent and undercurrent monitoring simultaneously. K8DT-AS/AW Single Phase Current Relay. Omron K8DT-AS/AW single phase current relays detect errors in motors and other equipment through current changes. Monitor AC or DC currents with one Relay. Use with commercially available current transformers Width of 17.5 mm to reduce space required in panels. Push-In Plus Terminal that reduce wiring work. Double-insertion holes for crossover wiring (all terminals).
