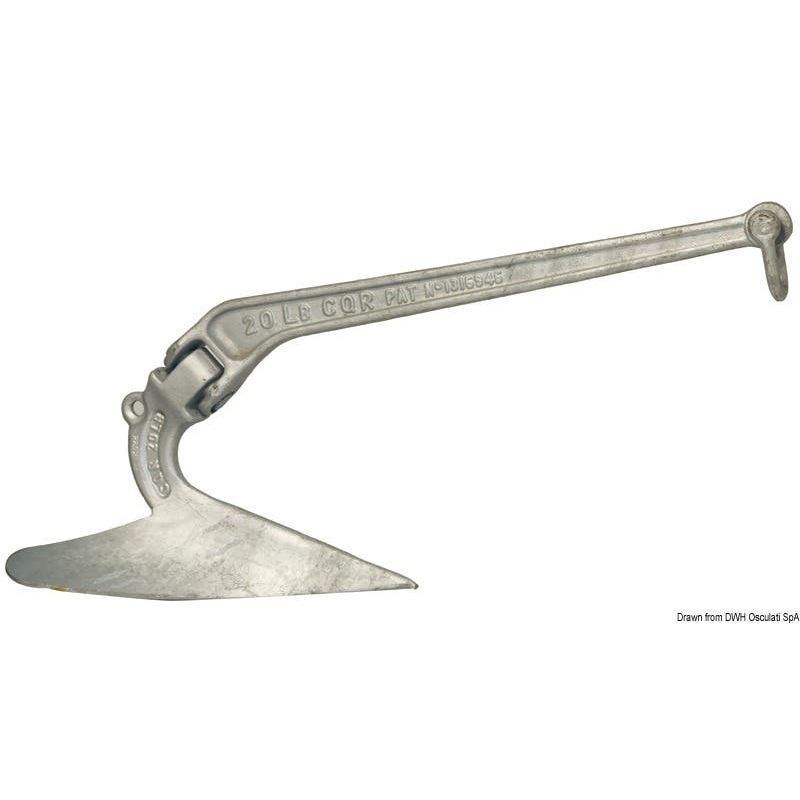

The Lewmar CQR Galvanized Cast Steel Anchor is a plough-type anchor renowned for its superior performance and reliability in various seabed conditions. Its hinged shank design ensures consistent setting and holding, even in challenging environments. Constructed from high-quality galvanized steel, this anchor offers enhanced corrosion resistance, making it suitable for both saltwater and freshwater applications.
- Hinged Shank Design: Allows the anchor to self-stabilize, ensuring consistent setting and holding power.
- Galvanized Steel Construction: Provides increased strength and corrosion resistance for long-lasting durability.
- High Holding Power: Lloyd's Register certified as a high holding power anchor, suitable for various seabed conditions.
- Lifetime Guarantee Against Breakage: Offers peace of mind with a lifetime warranty against breakage, excluding damage from deformation or bending.
The Lewmar CQR Galvanized Cast Steel Anchor is available in various weights to accommodate different boat sizes. Below are the specifications for select models:
| Weight (kg) | Weight (lb) | Recommended Chain Size (mm) | Length (mm) | Width (mm) | Height (mm) | Boat Length (ft) |
|---|
| 7 | 15 | 6 | 626 | 253 | 439 | Up to 20 |
| 9 | 20 | 8 | 690 | 279 | 484 | Up to 25 |
| 11 | 25 | 8 | 740 | 299 | 552 | Up to 30 |
| 16 | 35 | 10 | 989 | 402 | 700 | Up to 45 |
| 20 | 45 | 10 | 1,200 | 450 | 800 | Up to 50 |
| 27 | 60 | 12.5 | 1,500 | 500 | 900 | Up to 60 |
| 34 | 75 | 12.5 | 1,800 | 550 | 1,000 | Up to 70 |
| 48 | 105 | 12.5 | 2,000 | 600 | 1,200 | Up to 80 |
| 66 | 140 | 12.5 | 2,200 | 650 | 1,400 | Up to 90 |
| 81 | 180 | 12.5 | 2,400 | 700 | 1,500 | Up to 100 |
| 108 | 240 | 12.5 | 2,600 | 750 | 1,600 | Up to 110 |
| 136 | 300 | 12.5 | 2,800 | 800 | 1,700 | Up to 120 |
| 182 | 400 | 12.5 | 3,000 | 850 | 1,800 | Up to 130 |
| 227 | 500 | 12.5 | 3,200 | 900 | 1,900 | Up to 140 |
| 273 | 600 | 12.5 | 3,400 | 950 | 2,000 | Up to 150 |
Dimensions vary based on the anchor's weight. For example, the 7 kg (15 lb) model measures approximately 626 mm in length, 253 mm in width, and 439 mm in height. Larger models, such as the 66 kg (140 lb) anchor, measure around 2,200 mm in length, 650 mm in width, and 1,400 mm in height. Specific dimensions for each model can be found on Lewmar's official website.
Materials:
- Anchor Body: High-quality galvanized steel for enhanced strength and corrosion resistance.
- Shank: Hinged design for self-stabilization and consistent setting.
Compatibility Information:
- Windlass Compatibility: The CQR anchor is compatible with both electric and manual windlasses, facilitating easy deployment and retrieval.
- Bow Roller Stowage: The tapered shank and hinged plow design allow for convenient stowing on most bow rollers.
