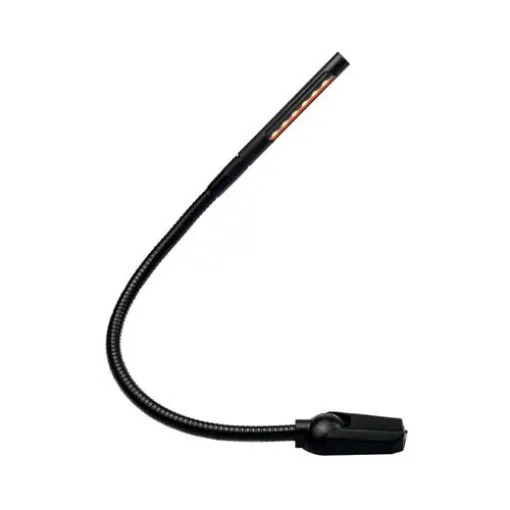

The Labcraft Dual Colour LED Map/Chart Light is a versatile lighting solution designed for use in boats, vehicles, and other 12V systems. It features a flexible arm, built-in switch, and dual lighting options—white for reading and red for night use.
- Dual Colour Lighting: Offers both cool white and red light outputs, easily switchable via a rotating lens.
- Flexible Arm: 300mm long, allowing precise positioning of the light.
- Integrated Switch: Compact on/off switch located at the base for user convenience.
- Low Power Consumption: Operates at an average current draw of 0.07A, making it energy-efficient.
- Durable Construction: Made from steel and plastic, ensuring longevity and resistance to marine environments.
- Easy Installation: Comes with a steel mounting plate and fixing holes; connection via flying leads.
Technical Specifications
- LEDs: 5 high-brightness LEDs
- Light Output: 72 lumens
- LED Power: 0.85W
- Operating Voltage: 10-14V DC
- Average Current Draw: 0.07A
- Material: Steel and plastic
- IP Rating: IP40
- Operating Temperature Range: -30°C to +40°C
- Flexible Arm Length: 300mm
- Overall Dimensions: 460mm (L) x 35mm (W) x 18mm (D)
- Fixing Hole Diameter: 5mm
Materials
- Housing: Black steel and plastic
- Lens: Rotating lens with clear and red sections
Compatibility Information
Designed for 12V DC systems, suitable for use in motorhomes, caravans, campervans, horseboxes, 4x4s, and commercial vehicles. Not specified for 24V systems.
Other Relevant Details
- Mounting Orientation: Recommended to be fitted in a downward orientation and flexed upwards for use.
- Approval: ECE R10 approval certificate E11 10R-057639
