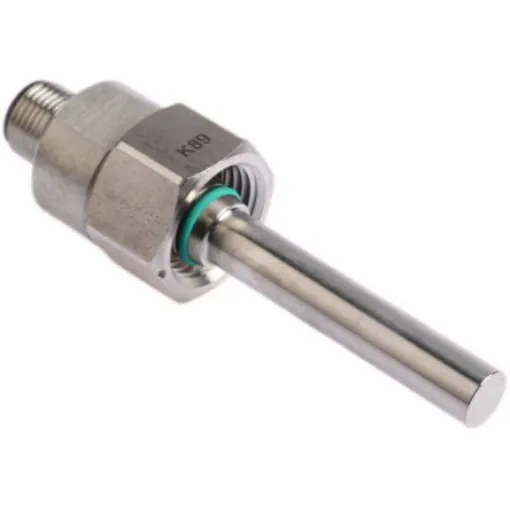

ifm electronic SF5 Series Modular Flow Monitoring Flow Sensor for Gas, Liquid, 200 (Gases) ccm/s, 3 (Liquids) ccm/s - SF5200

Media Monitored = Gas, Liquid
Device Type = Modular Flow Monitoring
Minimum Flow Rate = 200 (Gases) ccm/s, 3 (Liquids) ccm/s
Maximum Flow Rate = 300 (Liquids) cm³/s, 3000 (Gases) cm³/s
Connection Type = M18 x 1.5
Maximum Pressure = 300bar
Material = Stainless Steel
Minimum Media Temperature = -25 (Gases) °C, -25 (Liquids) °C
Maximum Media Temperature = +80°C
Series = SF5

ifm electronic Flow SensorThe ifm electronic SF5 series modular flow monitoring sensor sense flow rate for liquid is 3 ccm/s to 300 cm³/s and for gases is 200 ccm/s to 3000 cm³/s. The sensor with ceramic housing can be used in aggressive media. This product range comprises of evaluation units for control cabinet installation or local mounting. Depending on the unit, it is possible to monitor flow, temperature and/or wire break. All units indicate the flow with an LED bar graph. The evaluation units for local mounting are connected to the flow sensor directly at the measuring point using an M12 connector. The sensors and evaluation systems are designed and approved for use in hazardous areas, according to the applicable directives. It is suitable for high-temperature range.Features and BenefitsConnection type is M18 x 1.5 Maximum operating pressure is 300bar For connection to an evaluation unit Very high-pressure resistance Simple process connection via adapter Robust design for use in harsh industrial environmentsCertificationsDIN IEC 68-2-27 DIN IEC 68-2-6 IP67 rated
