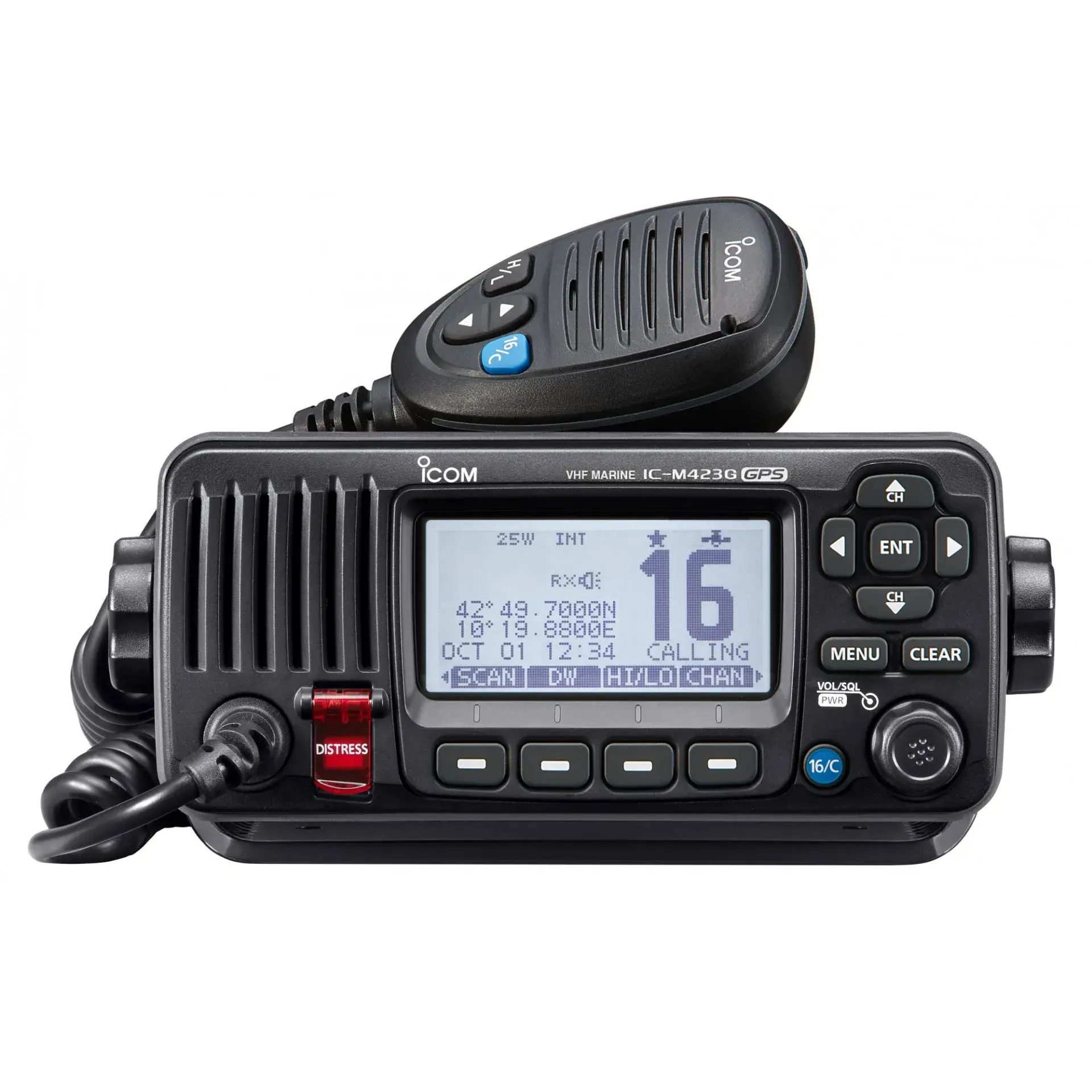

The Icom IC-M423GE is a compact fixed VHF marine transceiver designed for modern boating needs. It integrates advanced features such as a built-in GNSS GPS receiver, active noise cancelling technology, and a high-contrast white backlit LCD display. The device is engineered for durability with IPX7 waterproof protection, ensuring reliable performance in various marine environments.
- Built-in GNSS GPS Receiver: Equipped with a high-performance GNSS receiver supporting GPS, GLONASS, and SBAS, the IC-M423GE provides accurate positioning data. An external GPS antenna is included to enhance signal reception.
- Active Noise Cancelling: Utilizes digital processing to reduce background noise by up to 90% in received signals and 30% in transmitted signals, ensuring clear communication in noisy environments.
- High-Contrast White Backlit LCD and Keypad: Features a white backlit LCD screen and laser-cut keys for intuitive operation and enhanced visibility, complementing modern boat designs.
- 10 W Loud Audio, Public Address, and Foghorn: Includes a built-in 10 W amplifier for loud audio output through external speakers, a public address function for announcements, and a foghorn feature for signaling.
- Built-in Class D DSC (Digital Selective Calling): Monitors Channel 70 for DSC activity, even while receiving on another channel, and supports distress, individual, group, all ships, urgency, safety, position request/report, polling request, and DSC test calls.
- AquaQuake™ Function: Employs infrasound to eject water from the speaker, ensuring clear audio output after exposure to water.
- Dual/Triple Watch Function: Allows monitoring of Channel 16 and/or a call channel simultaneously, enhancing situational awareness.
- NMEA 0183 Connectivity: Enables integration with compatible marine electronics for comprehensive navigation and communication systems.
- Optional Remote Control Microphone (COMMANDMIC™ HM-195GB/GW): Provides full control of the IC-M423GE from a separate cabin or tower, with intercom functionality between the microphone and transceiver.
Technical Specifications:
- Frequency Range: Transmit: 156.000–161.450 MHz, Receive: 156.000–163.425 MHz, Channel 70: 156.525 MHz
- Usable Channels: INT, USA* channels (*Available depending on version)
- Output Power: 25 W, 1 W
- Current Drain (at 12.0V DC): Transmit (25 W output): 5.5 A, Receive (External Speaker): 5.0 A, Receive (Internal Speaker): 1.5 A
- Operating Temperature Range: −20°C to +60°C
- Antenna Impedance: 50 Ω (SO-239)
- Dimensions (W×H×D): 180×82×119.9 mm
- Weight: 1.2 kg
- Ingress Protection (IP) Rating: IPX7 (Waterproof protection)
- GPS Receiver: Receiving Frequency: 1575.42 MHz, Receiving Channels: 66 channels, Satellite Differential Type: WAAS, EGNOS, MSAS, GAGAN
Constructed with durable materials suitable for marine environments, ensuring longevity and resistance to corrosion.
