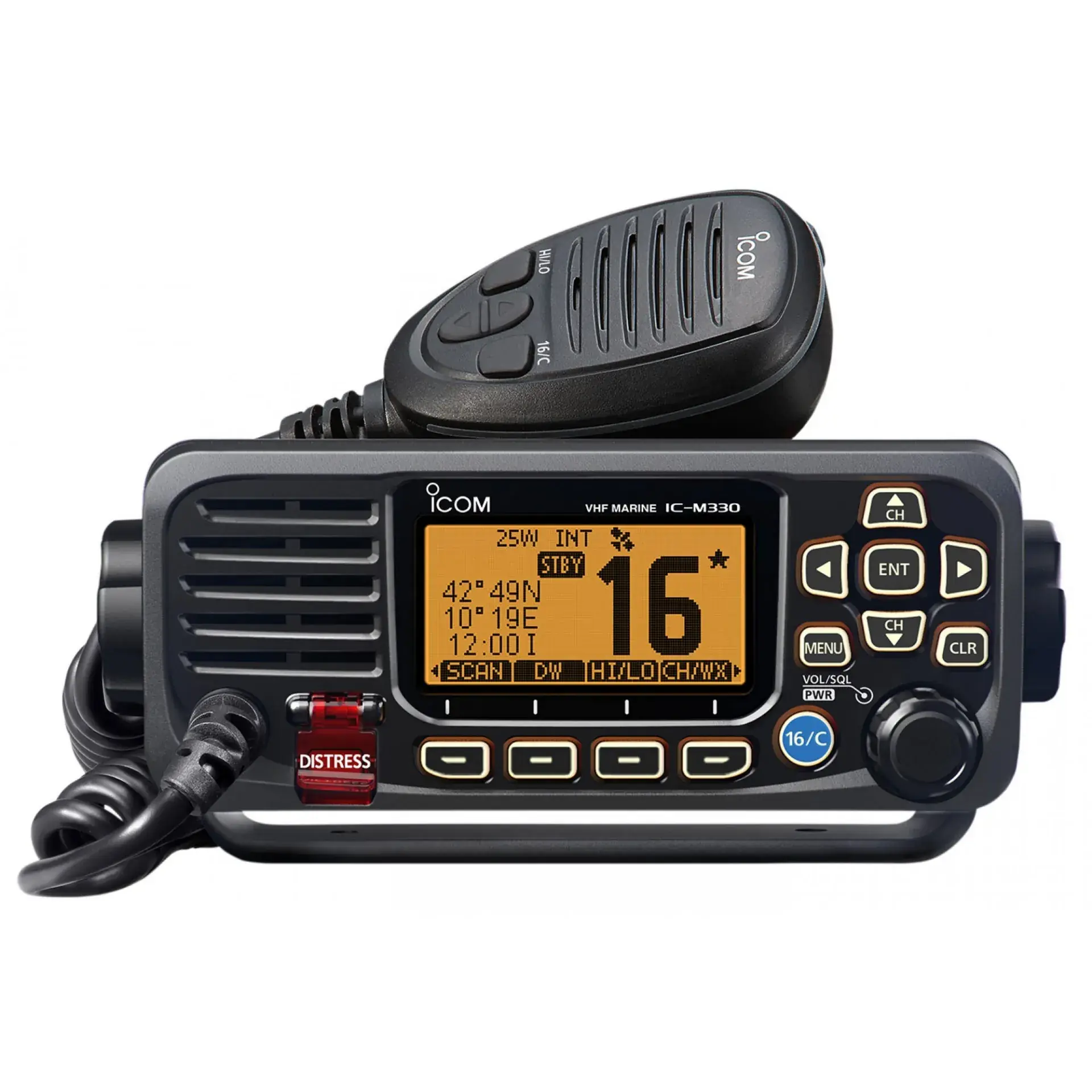

The Icom IC-M330GE is an ultra-compact VHF marine transceiver designed for seamless integration into limited spaces, such as boat cockpits. Measuring 156.5 (W) × 66.5 (H) × 110.1 (D) mm, it offers flexible installation options.
- Built-in GPS Receiver: Utilizes GPS, GLONASS, and SBAS to provide location, bearing, and speed information, which can be used for DSC calls.
- Class D DSC Functionality: Monitors Channel 70 continuously, even while receiving another channel, supporting distress, individual, group, all ships, urgency, safety, position request/report, polling request, and DSC test calls.
- High-Performance Receiver: Ensures reliable communication in RF-dense environments like marinas, with selectivity and intermodulation distortion (IMD) exceeding 70 dB.
- Intuitive User Interface: Features a directional keypad and soft keys for simple operation, with frequently used functions accessible via soft keys.
- Dynamic Audio Output: Equipped with a newly designed speaker that delivers clear, distortion-free audio across a wide frequency range, even at full volume.
- AquaQuake™ Function: Prevents audio degradation from a water-logged speaker by emitting an infrasound to expel water.
- Dual/Triple Watch Function: Allows monitoring of Channel 16 and/or a call channel, enhancing safety by keeping track of distress and emergency communications.
- Priority Scan Function: Enables scanning of channels while prioritizing specific channels, ensuring timely reception of important communications.
- External Speaker Connection: Provides an option to connect an external speaker for enhanced audio output.
Technical Specifications:
- Frequency Range: Transmit: 156.000–162.000 MHz, Receive: 156.000–163.425 MHz, Channel 70: 156.525 MHz
- Usable Channels: INT, USA channels (availability depending on version)
- Power Output: 25 W and 1 W
- Current Drain: Transmit (25 W output): 5 A, Receive (max. audio): 1 A
- Operating Temperature Range: -20°C to +60°C
- Antenna Impedance: 50 Ω (SO-239)
- Dimensions: 156.5 (W) × 66.5 (H) × 110.1 (D) mm
- Weight: 730 g
- NMEA Formats: Input: RMC, GGA, GNS, GLL, VTG; Output: DSC, DSE, RMC, GSA, GSV
Constructed with high-quality materials to ensure durability and reliability in marine environments.
Compatibility Information:
- External GPS/NAV Connection: Features a common NMEA interface for integration with external GPS or navigation equipment.
- AIS Transponder Compatibility: Compatible with the MA-500TR Class B AIS transponder, allowing for AIS target calls.
