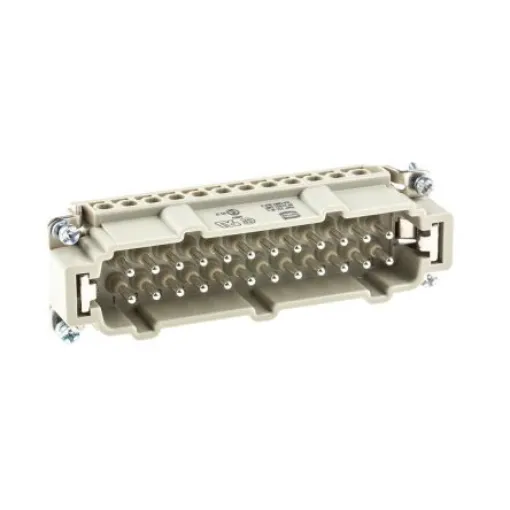

HARTING Heavy Duty Power Connector Insert, 16A, Male, Han E Series, 24 Contacts - 09330242601
Reliable 16A male connector insert for heavy-duty applications.
Manufacturer part number: 09330242601
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Current Rating = 16A
Gender = Male
Series = Han E
Type = Connector Insert
Termination Method = Screw
Pole Format = 24P+E
Number of Rows = 2
Voltage Rating = 500 V
Number of Contacts = 24
Thread Size = M3 x 10mm²
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection. UL, CSA, SEV. Han E® Inserts. • Poles: 6-48 (screw connection – wire csa 2.5mm². • The 32 and 48 pole versions require two contact inserts per connector half; a standard insert numbered ‘1 to 16 ‘ or ‘1 to 24 ‘ pole insert (m) or (f) together with one numbered ‘17 to 32 ‘ or numbered ‘25 to 48 ‘ insert (m) or (f). • These are identified in the price table - e.g. 32P + E (17 – 32)
