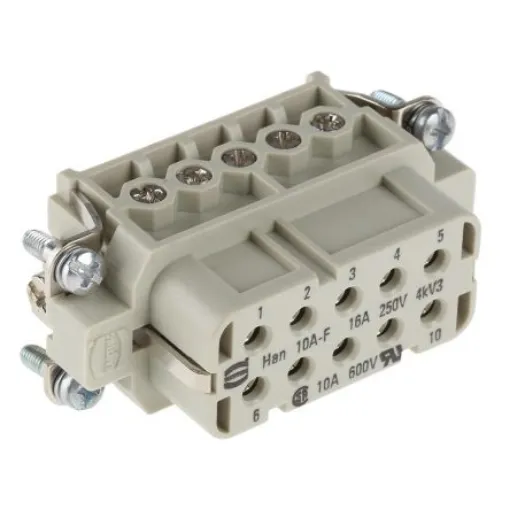

HARTING Heavy Duty Power Connector Insert, 16A, Female, Han A Series, 10 Contacts - 09200102812
This HARTING 16A female connector insert ensures reliable power connections for demanding applications.
Manufacturer part number: 09200102812
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Current Rating = 16A
Gender = Female
Series = Han A
Type = Connector Insert
Termination Method = Screw
Pole Format = 10P+E
Number of Rows = 2
Voltage Rating = 600 V
Mounting Type = Panel Mount
Number of Contacts = 10
Body Orientation = Straight
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection. UL, CSA, SEV. Two 16P + E inserts may be accommodated within a ‘Size ‘ 32A housing (typical stock no ; 363-7964 363-7964 ). Han A® Inserts. Harting contact inserts have a wide range of uses. Inserts are selected according to the desired number of poles and voltage and current ratings. Han A inserts options include: ; 1810482 1810482 – 09200042611, 4P+E pin insert,10A ; 1810498 1810498 – 09200042711, 4P+E socket insert,10A ; 1810858 1810858 – 09200032611, 3P+E pin insert,10A ; 1810870 1810870 – 09200032711, 3P+E socket insert,10A ; 1810886 1810886 – 09200102612, 10P+E pin insert,16A ; 1810892 1810892 – 09200102812, 10P+E socket insert,16A ; 1810915 1810915 – 09200162612, 16P+E pin insert,16A ; 1810937 1810937 – 09200162812, 16P+E socket insert,16A. Han A series Features:. • Slim construction • Poles: 3-16 (screw connection)
