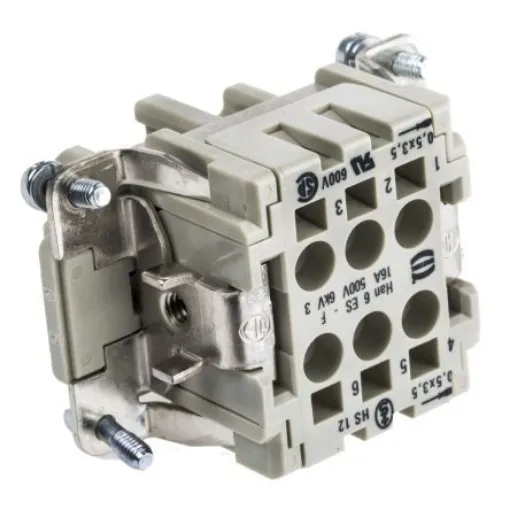

HARTING Heavy Duty Power Connector Insert, 10A, Female, Han ES Series, 6 Contacts - 09330062716
Reliable 10A female connector insert for heavy-duty power applications.
Manufacturer part number: 09330062716
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Current Rating = 10A
Gender = Female
Series = Han ES
Type = Connector Insert
Number of Rows = 2
Voltage Rating = 500 V
Number of Contacts = 6
Body Orientation = Straight
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection. UL, CSA, SEV. Cage Clamp Contact Inserts. From Harting, this series of robust cage clamp contact inserts are suitable for wire termination of 26-14awg (0.14 – 2.5mm²) and require no tooling. These cage clamp contact inserts are ideal for when quick and simplistic termination is required in heavy duty power applications. Available in 6 to 24 poles, they have a current rating of 16A and a working voltage of 500V.
