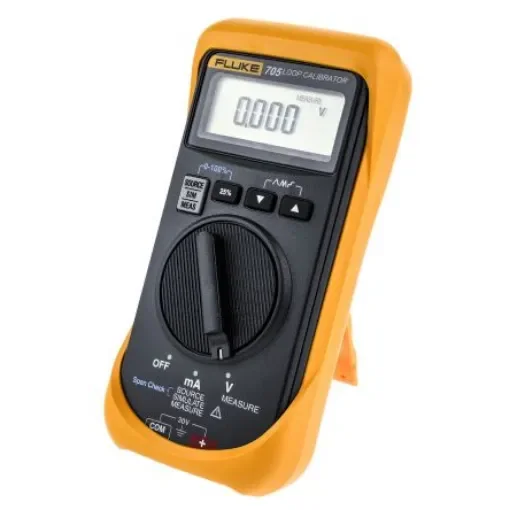

Fluke 705, 24mA Loop Calibrator - 0665091
Achieve precise current loop testing with the Fluke 705 Loop Calibrator, featuring high accuracy and easy operation.
Manufacturer part number: 0665091
Best Accuracy = ±0.025 %mA
Resolution = 0.001 mA
Safety Category = CSA C22.2
Battery Type = A, AA
Battery Life = 18 h
Power Source = Battery
Dimensions = 152 x 70 x 41mm
Weight = 340g
Height = 164mm
Length = 47mm
Maximum Operating Temperature = +55°C
Minimum Operating Temperature = -10°C
Width = 75mm
9V installed alkaline battery, AC70A alligator clips, C10 protective yellow holster Flex-Stand™, instruction sheet, TL75 safety-designed test lead set, NIST- traceable calibration report and data. 3. Fluke 705 Loop Calibrator. Fluke's integrated solution for calibration, maintenance of milliamp loops and repair, the 705 current loop calibrator is an ideal cost-effective source and measurement tool. Delivering a mA accuracy of 0.02% it also provides quick and easy readings due to the simultaneous % and mA display. For 0 to 20 mA or 4 to 20 mA current loop testing and dc voltage from 0 to 28 V, it is supplied with a set of TL75 test leads (726-3624) and alligator clips. Features and Benefits:. 0.02% accuracy 24 V loop supply with mA measure Simultaneous mA and % of span display Selectable step/ramp outputs mA sourcing, simulation and measurement Compact case and protective holster Quick battery replacement. FAQ's. What is a current loop calibrator?. Current loop calibrators are specially designed instruments for current loop trouble shooting, testing and calibration. They can source current on unpowered devices in a loop, simulate the operation of loop powered transmitters and also measure current. These calibrators often feature time saving technology, specialist graphics using digital interfaces and micro-processor based electronics. How much current flows in each loop of a parallel circuit?. Determined by Ohm's law, which states that the current between 2 points through a conductor is directly proportionate to the voltage across those 2 points, divided by the resistance of the conductor. I = V/R. This is also the case for series and parallel circuits, however in parallel circuits the total current can be affected by the way the resistors have been connected, as well as their ohmic value. Current does divide up and there can be more current in one area over another nonetheless when all areas are added up the total amount is the same.
