Maximum Load Current = 25 A
Mounting Type = Heatsink
Maximum Load Voltage = 280 V ac
Minimum Load Voltage = 21.6 V ac
Maximum Control Voltage = 230 V ac
Switching Type = Zero Cross
Control Voltage Range = 90
280 V ac
Minimum Load Current = 120 mA
Terminal Type = Screw
Package Style = Hockey Puck
Maximum Turn On Time = 40ms
Dimensions = 44.5 x 36.4 x 57.7mm
Off State Leakage Current = 10 mAmm

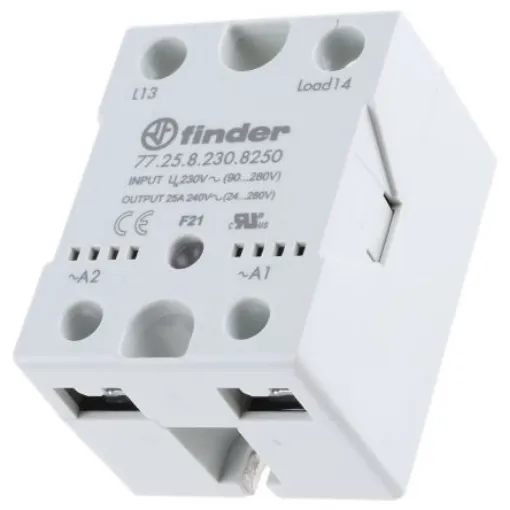

77 Series - Hockey Puck Solid State Relays. Finder 77 Series - 25, 40 and 50 A panel solid state relays, hockey puck style, specially designed for heater control applications. 48 to 600V ac output Zero-crossing switch-on version High switching speed and endurance Silent, spark and bounce-free switching Low control power Relay-style terminal arrangement (input and output terminals on opposite sides) Mounting on heatsink with screws IP 20 protection category Heat-sinks also available for models 77.25, 77.45 and 77.55
