Festo G 3/8 Pneumatic Regulator - 0.5bar to 12bar, 16bar max. input, 159580 - LR-3/8-D-MIDI
Efficiently regulate pressure with the Festo G 3/8 Pneumatic Regulator, designed for optimal performance.
Manufacturer part number: LR-3/8-D-MIDI
GTIN: 4052568011765
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 3/8
Maximum Outlet Pressure = 12bar
Minimum Outlet Pressure = 0.5bar
Maximum Input Pressure = 16bar
Manufacturer Series = D
Typical Flow Rate = 3200L/min
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Model Number p = 159580

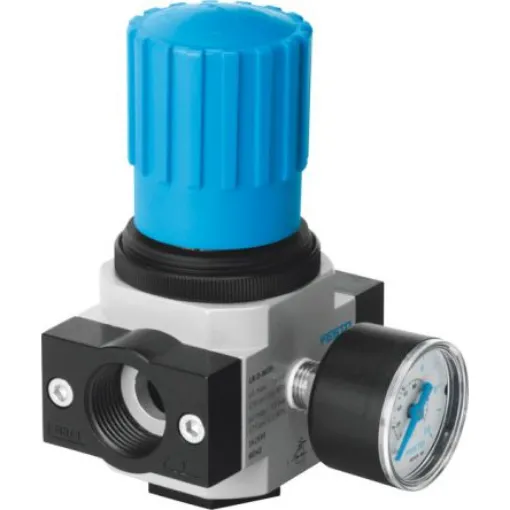

The Festo D series MIDI size pressure regulator has a G3/8 pneumatic connecting thread. It is a directly-controlled diaphragm regulator design structure with pressure gauge. The regulator has a working pressure up to 12bar.Actuator lock - rotary knob with lock Assembly position - any Nominal flow rate - 3,200 l/min
