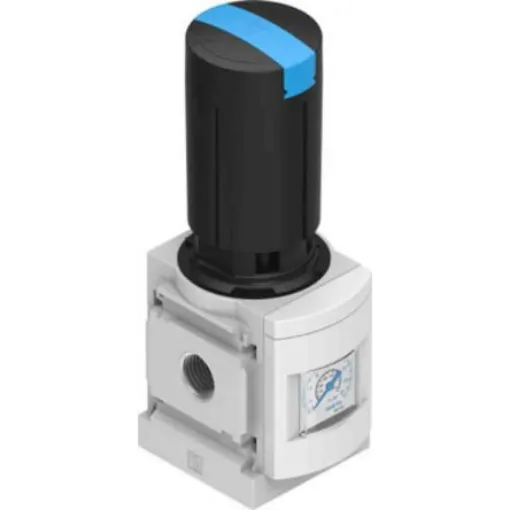

Festo G 3/8 Pneumatic Regulator - 0.3bar to 7bar, 20bar max. input, 530003 - MS6-LR-3/8-D6-AS
Achieve precise pressure control with the Festo G 3/8 Pneumatic Regulator, designed for reliable performance.
Manufacturer part number: MS6-LR-3/8-D6-AS
GTIN: 4052568015756
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 3/8
Maximum Outlet Pressure = 7bar
Minimum Outlet Pressure = 0.3bar
Maximum Input Pressure = 20bar
Manufacturer Series = MS
Typical Flow Rate = 5800L/min
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Model Number p = 530003
The Festo MS series pressure regulator has a G3/8 pneumatic port connecting thread with lockable regulator head. It. This regulator has a pressure gauge design structure with working pressure up to 7 bar.Direction of flow - from left to right Assembly position - any Size - 6
