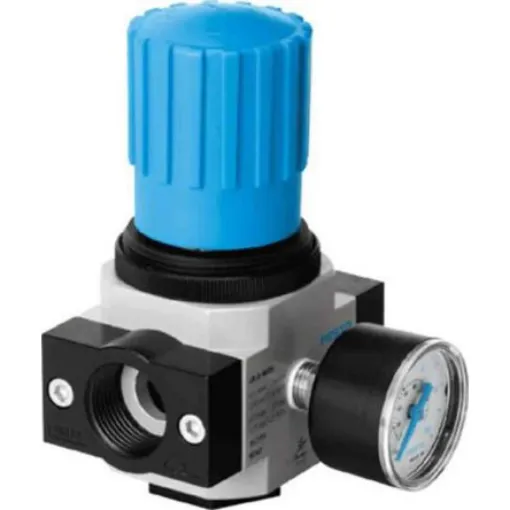

Festo G 3/4 Pneumatic Regulator - 0.5bar to 12bar, 3/4 in, 16bar max. input, 159626 - LR-3/4-D-MAXI
Achieve precise pressure control with the Festo G 3/4 Pneumatic Regulator, designed for reliable performance.
Manufacturer part number: LR-3/4-D-MAXI
GTIN: 4052568006341
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 3/4
Maximum Outlet Pressure = 12bar
Minimum Outlet Pressure = 0.5bar
Maximum Input Pressure = 16bar
Manufacturer Series = D
Port Connection Thread Size = 3/4 in
Typical Flow Rate = 11000L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Model Number p = 159626mm
The Festo D series pressure regulator has a G 3/4 pneumatic port connecting thread. It is a piloted piston regulator design structure with pressure gauge. The regulator has a working pressure up to 12 bar.Size = midi Actuator lock = rotary knob with lock Assembly position = any
