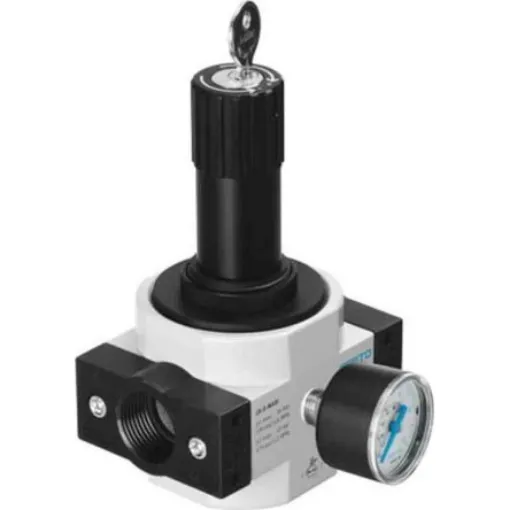

Festo G 1 Pneumatic Regulator - 0.5bar to 12bar, 1 in, 16bar max. input, 194666 - LRS-1-D-MAXI
Achieve precise pressure control with the Festo G 1 Pneumatic Regulator, designed for reliable performance.
Manufacturer part number: LRS-1-D-MAXI
GTIN: 4052568154028
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1
Maximum Outlet Pressure = 12bar
Minimum Outlet Pressure = 0.5bar
Maximum Input Pressure = 16bar
Manufacturer Series = D
Port Connection Thread Size = 1 in
Typical Flow Rate = 11500L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Overall Height = 125mm
The Festo D series pressure regulator has a G1 pneumatic port connecting thread with lockable regulator head. It is a piloted- piston regulator design structure with pressure gauge. It has a working pressure up to 12 bar.Size = maxi Actuator lock = rotary knob with lock Assembly position = any
