Festo G 1/8 Pneumatic Regulator - 0.3bar to 7bar, 14bar max. input, 543519 - MS4-LR-1/8-D6-A8
Efficiently regulate pressure with the Festo G 1/8 Pneumatic Regulator, designed for reliable performance.
Manufacturer part number: MS4-LR-1/8-D6-A8
GTIN: 4052568091477
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/8
Maximum Outlet Pressure = 7bar
Minimum Outlet Pressure = 0.3bar
Maximum Input Pressure = 14bar
Manufacturer Series = MS
Typical Flow Rate = 1150L/min
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Model Number p = 543519

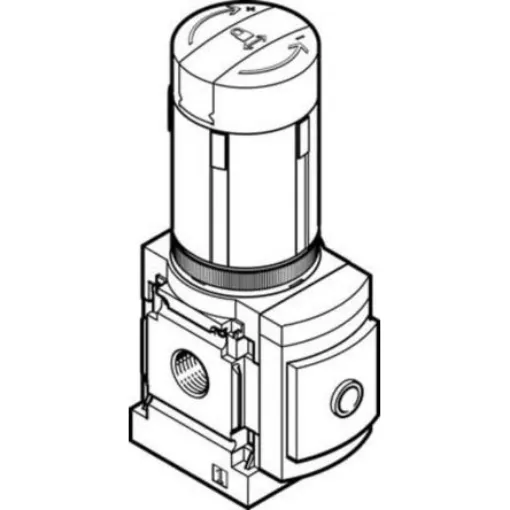

The Festo MS series pressure regulator has a G1/8 pneumatic port connecting thread. It is a directly-controlled diaphragm regulator design structure without pressure gauge. The regulator has a working pressure up to 7 bar.Direction of flow - from left to right Assembly position - any Size - 4
