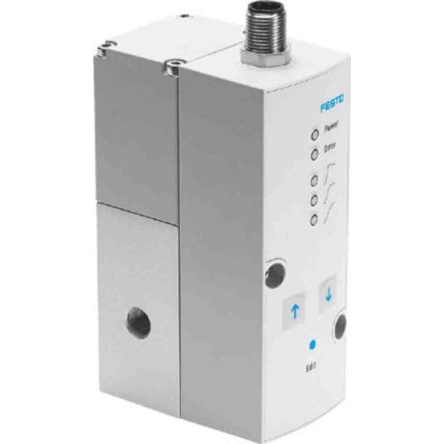

Festo G 1/8 Pneumatic Regulator - 0.2bar to 2bar, 4bar max. input, 542236 - VPPM-6L-L-1-G18-0L2H-A4N
Achieve precise pressure control with the Festo G 1/8 Pneumatic Regulator, designed for stability and efficiency.
Manufacturer part number: VPPM-6L-L-1-G18-0L2H-A4N
GTIN: 4052568180096
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/8
Maximum Outlet Pressure = 2bar
Minimum Outlet Pressure = 0.2bar
Maximum Input Pressure = 4bar
Manufacturer Series = VPP
Typical Flow Rate = 380L/min
Model Number p = 542236
The Festo VPPM Modular proportional pressure regulator is a 3-way in-line valve design with G1/8 thread connection and two-stage control circuit for stable. The pressure range is up to 2 bar.Pressurisation - 6 mm Nominal diameter, exhaust - 4.5 mm Assembly position - any
