Festo G 1/8 Pneumatic Regulator - 0.1bar to 10bar, 11bar max. input, 575125 - VPPM-6L-L-1-G18-0L10H-V1P-C1
Achieve precise pressure control with the Festo G 1/8 Pneumatic Regulator, ideal for various applications.
Manufacturer part number: VPPM-6L-L-1-G18-0L10H-V1P-C1
GTIN: 4052568223700
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/8
Maximum Outlet Pressure = 10bar
Minimum Outlet Pressure = 0.1bar
Maximum Input Pressure = 11bar
Manufacturer Series = VPP
Typical Flow Rate = 1400L/min
Model Number p = 575125

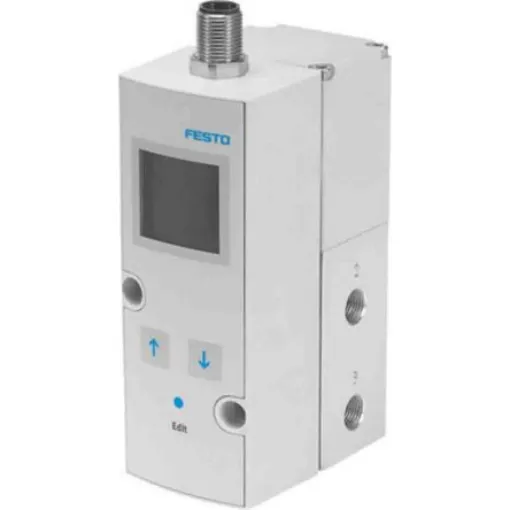

The Festo VPPM Modular proportional pressure regulator is a 3/2-way in-line valve design with G 1/8 thread connection. The pressure range is up to 10 bar with analogue set point of 10V.Nominal diameter - 6 mm Nominal diameter, exhaust - 4.5 mm Accuracy - 2% Assembly position - any
