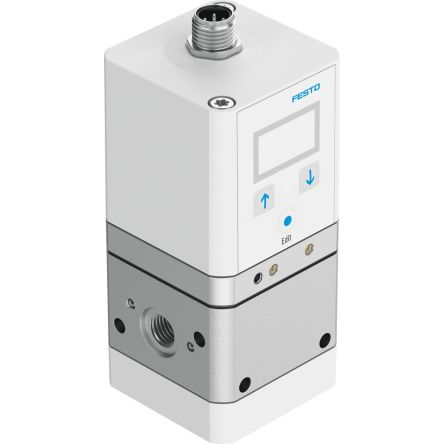

Festo G 1/8 Pneumatic Regulator - 0.1bar to 10bar, 1/8 in, 11bar max. input, 557776 - VPPE-3-1-1/8-10-420-E1

Port Connection = G 1/8
Maximum Outlet Pressure = 10bar
Minimum Outlet Pressure = 0.1bar
Maximum Input Pressure = 11bar
Manufacturer Series = VPP
Pressure Gauge Port Size = G 1/8
Port Connection Thread Size = 1/8 in
Typical Flow Rate = 1250L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = +10°C
Maximum Operating Temperature = +50°C
Overall Width = 50mm

Festo G 1/8 Pneumatic Regulator, 10 bar Maximum - VPP Maximum Series - VPPE-3-1-1/8-10-420-E1 This proportional pressure regulator from Festos VPPE range is a three-way valve function regulator. Based on an analogue signal that can be set between 4 and 20 mA, you can maintain pressure at a precise and constant level. This helps safeguard against fluctuating supply pressures and loads from consuming devices. To give you peace of mind, integrated sensors provide reliable pressure and flow control. The unit also features a 3-digit segment LED display for easy reading.• Maximum input pressure of 11 bar • Maximum outlet pressure of 10 bar • Minimum outlet pressure of 0.1 bar • G 1/8 connection • Typical flow rate of 1,250 L/min • Operating temperature range of +10°C to +50°C • Length of 50 mm • Height of 114 mm • Width of 50 mm Range Information • The VPPE series of proportional pressure regulators is characterised by its compact, sturdy design • High protection class IP65 – complete protection from dust, oil and other non-corrosive material • All products in the range are easily installed • Pressure is reported as an electrical signal • All components in the series offer multi-sensor control (also called cascade control) for stable and precise operationThe Festo VPPE Proportional pressure regulator is a 3-way valve function regulator with segment LED display. The pressure range is up to 10 bar with analogue set point of 4 to 20mA.Pressurisation - 5 mm, Nominal diameter, exhaust - 2.5 mm Assembly position - any (preferably upright)
