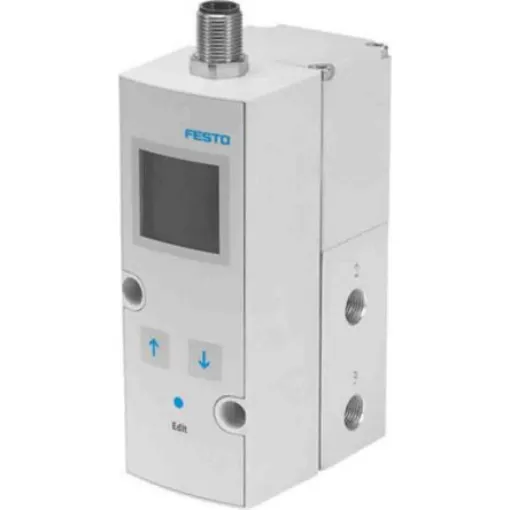

Festo G 1/8 Pneumatic Regulator - 0.06bar to 6bar, 8bar max. input, 575121 - VPPM-6L-L-1-G18-0L6H-V1P-S1C1
Achieve precise pressure control with the Festo G 1/8 Pneumatic Regulator, ideal for various applications.
Manufacturer part number: VPPM-6L-L-1-G18-0L6H-V1P-S1C1
GTIN: 4052568223694
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/8
Maximum Outlet Pressure = 6bar
Minimum Outlet Pressure = 0.06bar
Maximum Input Pressure = 8bar
Manufacturer Series = VPP
Typical Flow Rate = 900L/min
Model Number p = 575121
The Festo VPPM Modular proportional pressure regulator is a 3/2-way in-line valve design with G 1/8 thread connection and positive switching. The pressure range is up to 6 bar with analogue set point of 10V.Nominal diameter - 6 mm Nominal diameter, exhaust - 4.5 mm Accuracy - 1% Assembly position - any
