Festo G 1/8 Pneumatic Regulator - 0.06bar to 6bar, 8bar max. input, 554039 - VPPM-6L-L-1-G18-0L6H-V1P-S1

Port Connection = G 1/8
Maximum Outlet Pressure = 6bar
Minimum Outlet Pressure = 0.06bar
Maximum Input Pressure = 8bar
Manufacturer Series = VPP
Typical Flow Rate = 900L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = +10°C
Maximum Operating Temperature = +50°C
Model Number p = 554039

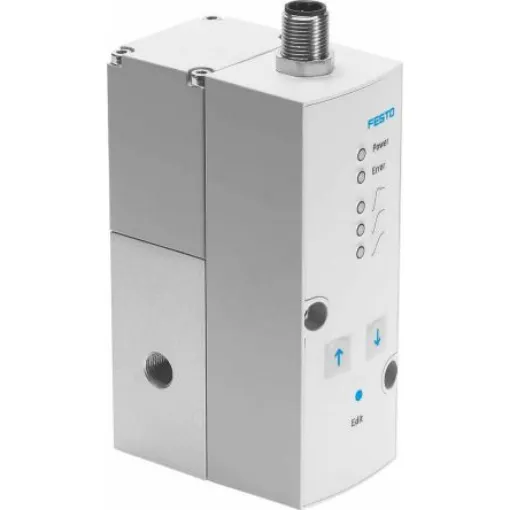

Festo Pneumatic Regulator, 0.06 Bar to 6 Bar, G 1/8 - VPP Series - VPPM-6L-L-1-G18-0L6H-V1P-S1 This proportional pressure regulator from Festo features precise adjustment and dynamic response times. It provides highly stable pressure regulation and can be used with electronic, pneumatic and mechanical systems. By simply selecting one of the units three pre-set functions, you can choose the operation that suits your application, without needing any specialised expertise. The components integrated sensors ensure that efficient regulation results are consistently achieved. For added convenience, you can use it to monitor and control almost all pressure values remotely. Its temperature compensation function means that you dont have to worry about pressure drifting when temperatures change. This proportional pressure regulator can be controlled by voltage or current. It features Festos plug-and-work installation system, so you dont need to adjust your control circuit. You can use the unit in any application where force and pressure need to be strictly regulated.• Wide ambient temperature range of 0°C to +60°C • Typical flow rate of 900 L/min for high-flow applications • IP (ingress protection) 65 rating for protection against dust and water • Clear and easy-to-read LED display • Wrought-aluminium housing for durability and corrosion resistance
