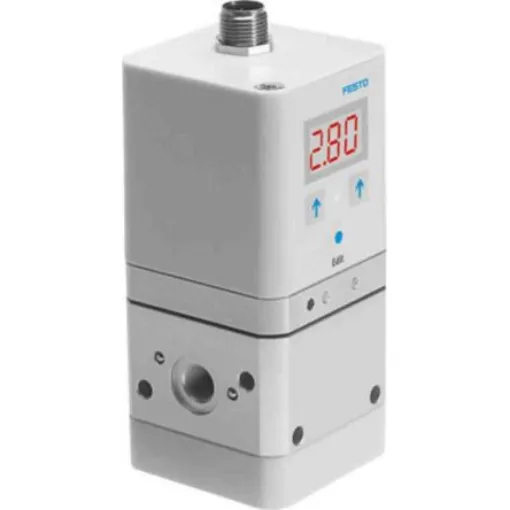

Festo G 1/8 Pneumatic Regulator - 0.02bar to 2bar, 4bar max. input, 557771 - VPPE-3-1-1/8-2-010-E1
Achieve precise pressure control with the Festo G 1/8 Pneumatic Regulator, designed for reliable performance.
Manufacturer part number: VPPE-3-1-1/8-2-010-E1
GTIN: 4052568203948
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/8
Maximum Outlet Pressure = 2bar
Minimum Outlet Pressure = 0.02bar
Maximum Input Pressure = 4bar
Manufacturer Series = VPP
Pressure Gauge Port Size = G 1/8
Maximum Flow Rate = 310L/min
Typical Flow Rate = 310L/min
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +60°C
Model Number p = 557771
The Festo VPP Proportional pressure regulator is a 3-way valve function regulator with G 1/8 port connection. It has a pilot actuated diaphragm regulator structure with electrical actuation.Pressurisation - 5 mm Nominal diameter, exhaust - 2.5 mm Assembly position - any (preferably upright)
